RockJock JK Wrangler Unlimited 4Dr Currectlync High Steer Front Trac Bar Relocation/Ram Assist Mount

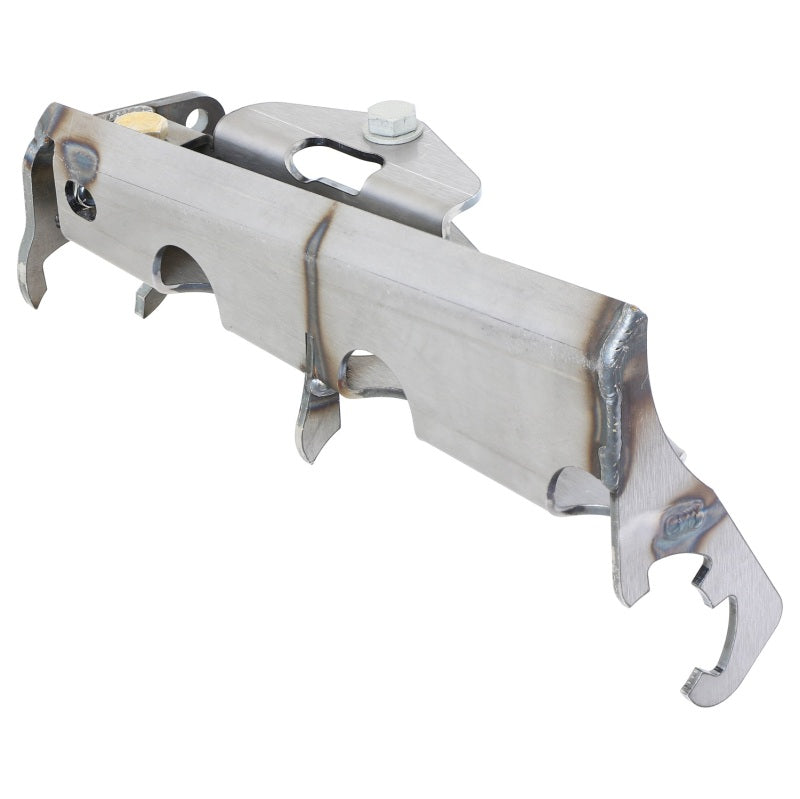

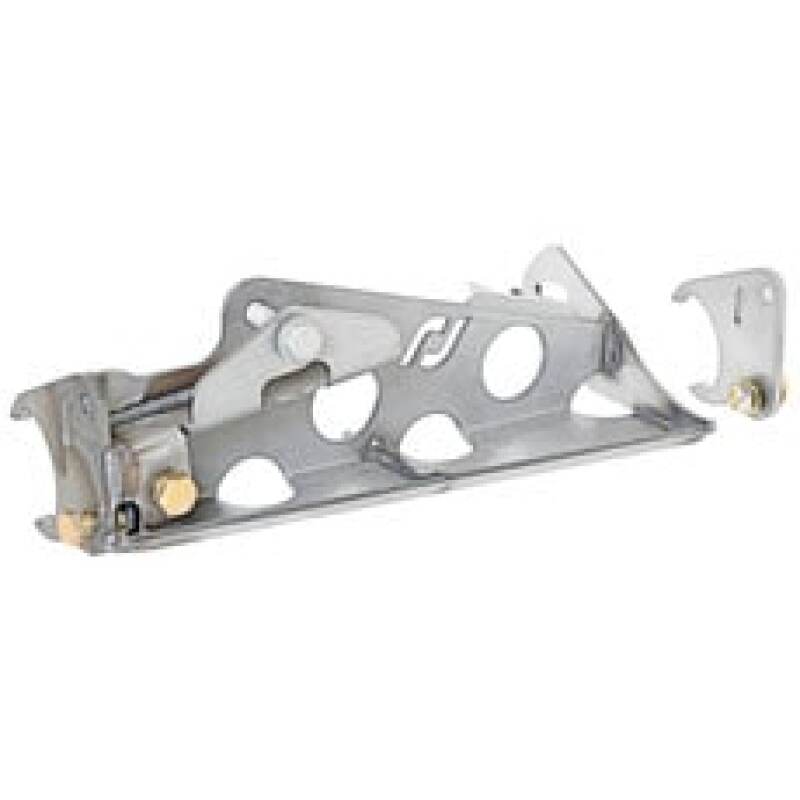

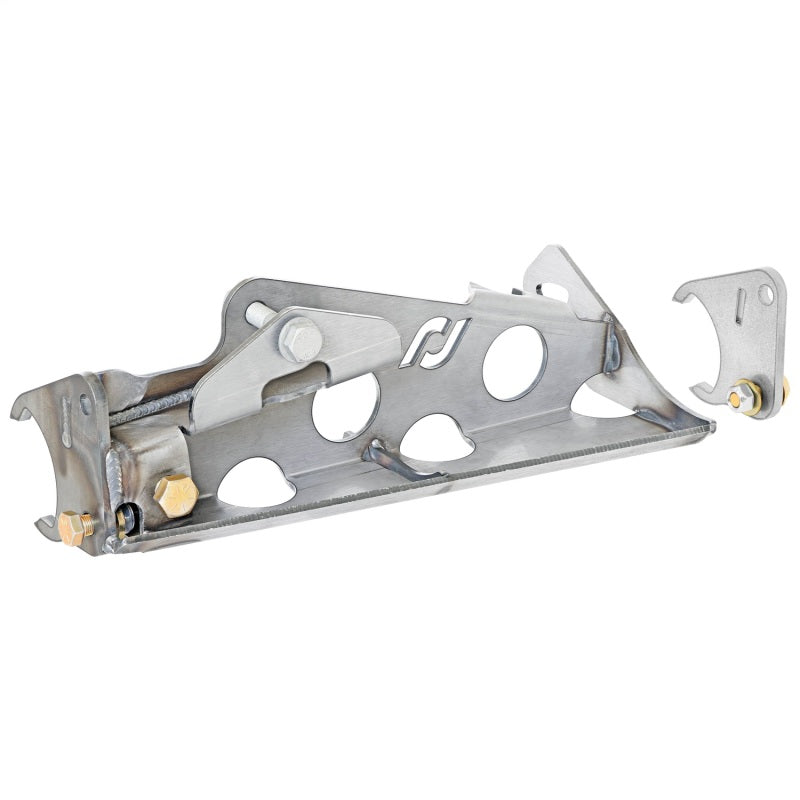

RockJocks Trac Bar Relocation and Ram Assist Mount Axle Bracket Kit for JK Wrangler and Unlimited vehicles is designed specifically to be used in conjunction with our High Steer Knuckles and our longer JL/JT Trac Bar. The JL/JT trac bars longer length pushes the trac bar adjuster joint outboard of the frame rail providing an additional 5/8 in. of up-travel! This integrated trac bar relocation and ram assist mounting bracket raises the mounting point for the JL/JT trac bar 2 in., preventing you from incurring any bump steer, as well as giving you a solid mounting point for your hydraulic steering assist ram. The bottom of the bracket acts as a skid plate, protecting the ram from rocks. Both the large and small axle brackets included in this kit feature relocated sway bar end link mouning holes causing your sway bar end link length to require adjustment. Brackets easily install, but do require some minor welding, however, both brackets can be mounted solidly enough with the supplied bolts to allow you to drive to a welder if need be. We recommend buying this bracket in our complete RJ-430000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. Use of their RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.

• Complete RJ-430000-101 High Steer Knuckle Kit You Are Ensured A Complete System That Includes Everything You Need
• We Highly Recommend The Use Of Our RJ-107101-101 Adjustable Bump Stop Kit To Attain Maximum Attainable Up-Travel
• Requires A Hydraulic Assist Steering Ram Stroke Of 7.375 in. To Achieve Full Potential [Factory Steering Radius]
• For Use On Any Factory JK Dana 30 Or Dana 44 Front Differential Or Any Aftermarket Replacement Axle
• Brackets Provide New Sway Bar Link Mounting Holes That Are Raised 2 1/8 in. Higher Than Stock
• The Optimized Geometry This Kit Provides Requires The Use Of Our RJ-9120FJLF Trac Bar
• This Bracket Is Intended For Use In Conjunction With Common PSC Ram Assist Steering Kits

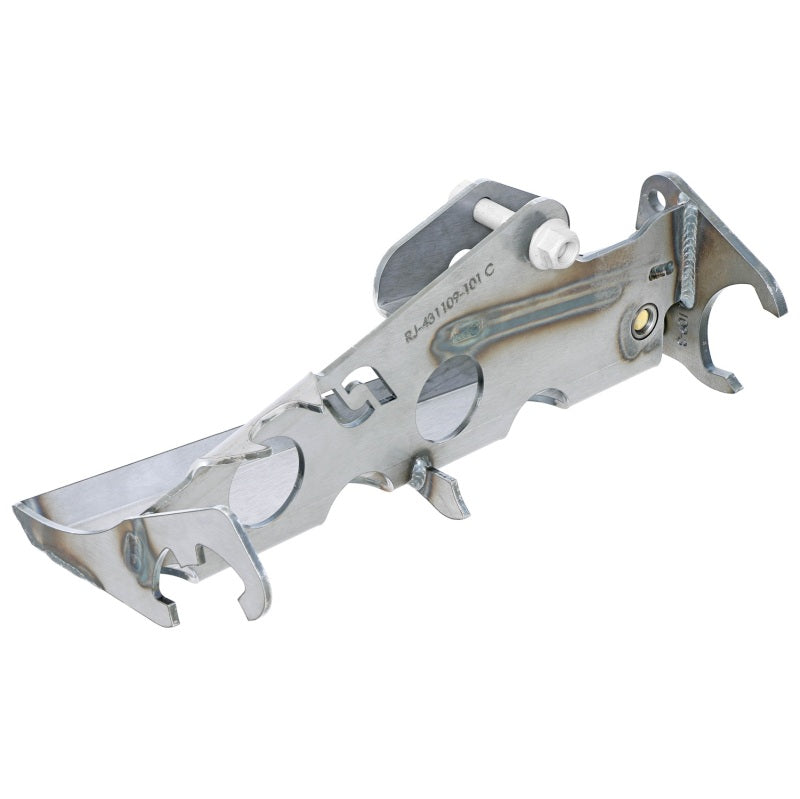

• Trac Bar And Sway Bar End Link Relocation And Ram Mount [Passenger Side] Bracket
• Incl. All Necessary Hardware And Step-By-step Instructions

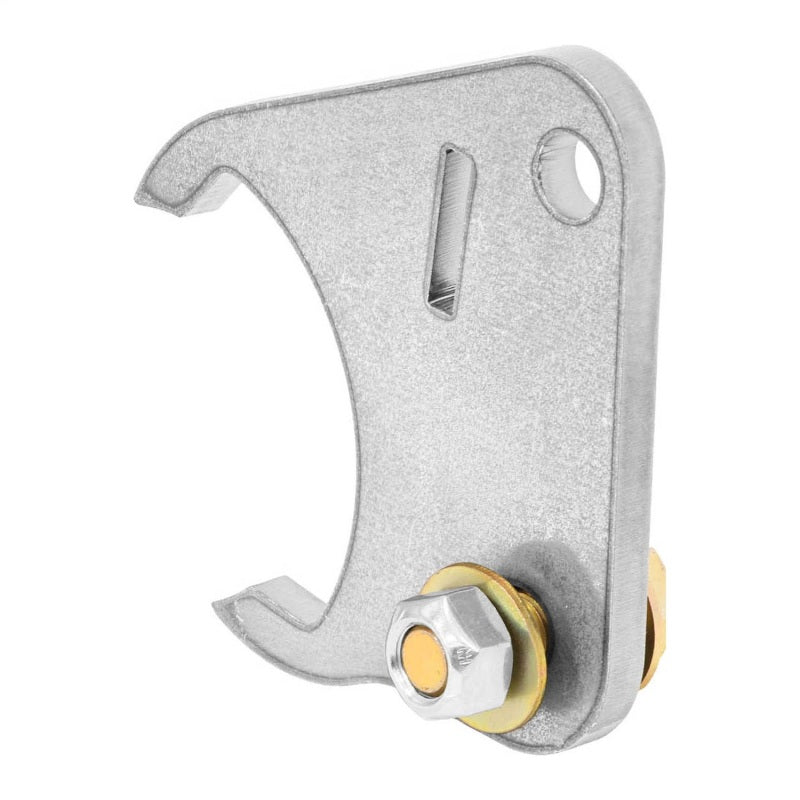

• Sway Bar End Link Relocation [Driver Side] Bracket

This Part Fits:
