1963-1991 Full Size Jeeps (FSJ) Coilover Conversion Kit for Super Duty Axle Swap- Weld On
Currently a 3-4 week lead time until shipping. Made-to-order.
Place your order to be next in line. Price does not include installation.

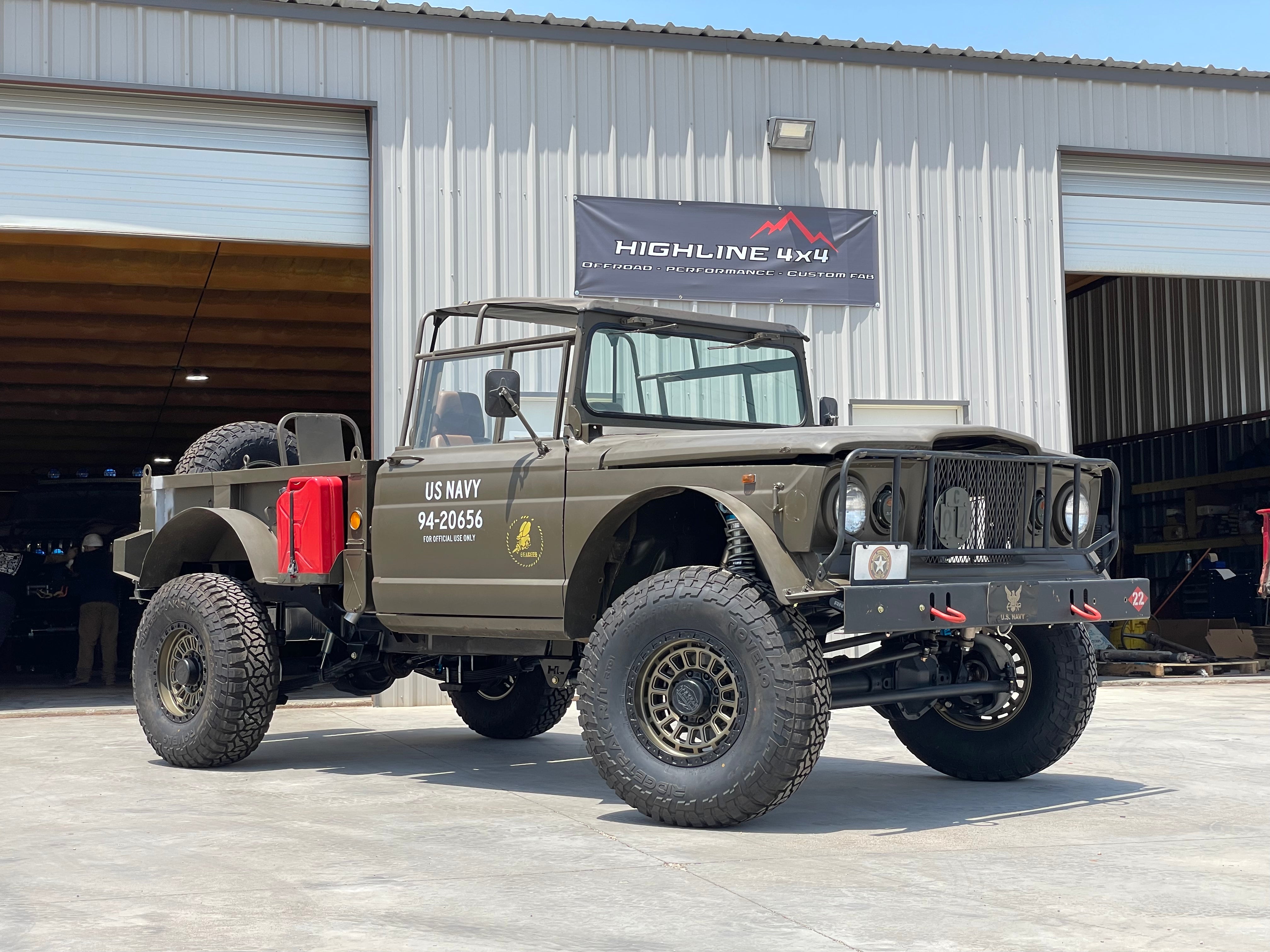

Ditch the old rickety suspension and bring your Full Size Jeep to modern times!
For 1963-1991 Full Size Jeeps (FSJ) and variants (M715, etc.). Designed and made in the heart of Texas by Highline 4x4.

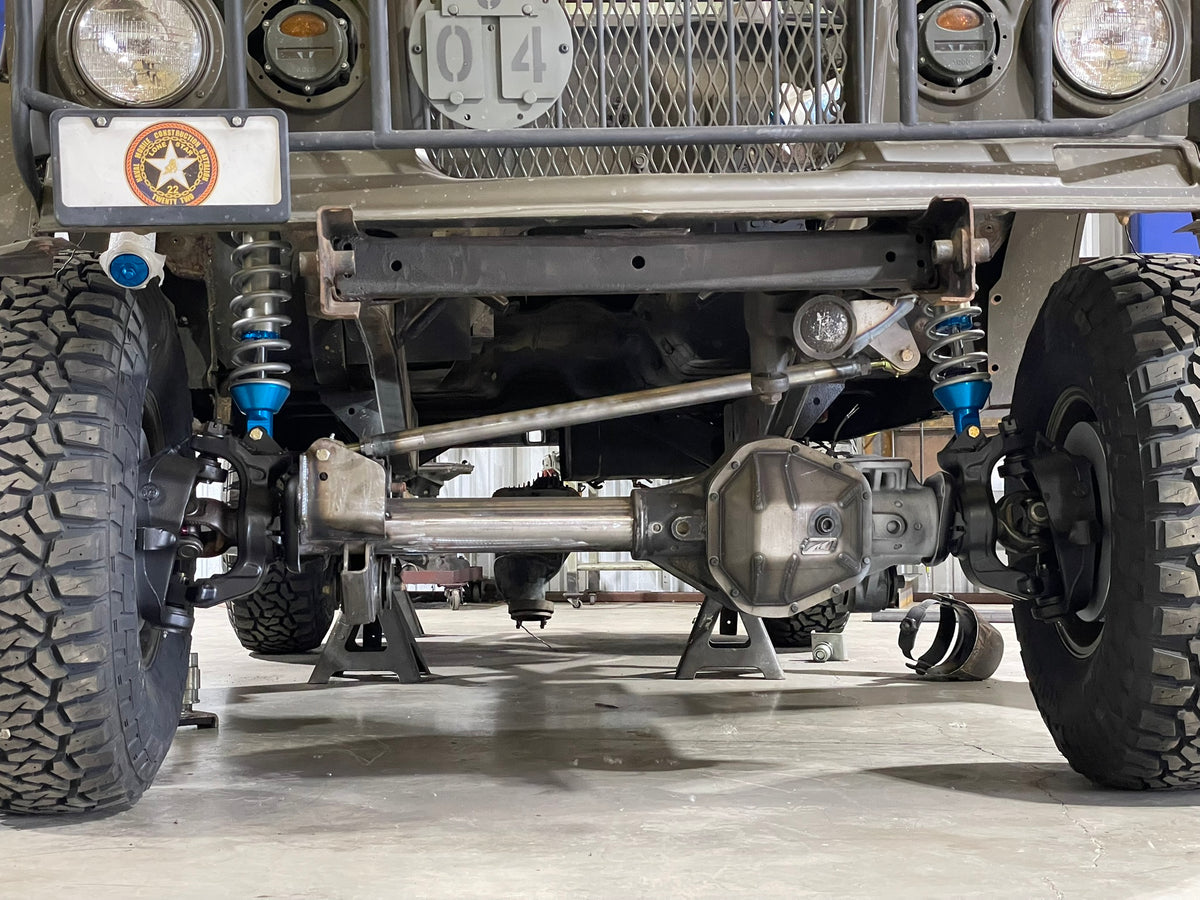

This coilover kit is specifically designed for adding a 2005+ Ford Super Duty front Dana 60 axle to your Full Size Jeep. They're strong, affordable, readily available and are easy to get parts for. Offered separately from our Coilover Kits, we offer complete rebuilt axles and Highline Pro and Highline Pro HD Series axles. Check out our other listings for more information.
If desiring to use another front axle besides an 05+ Super Duty Dana 60, we offer brackets for welding to the tubes to mount to the radius arms. Select that option at checkout. We will contact you for the tube diameter after checkout to make sure you get the right size.
This Coilover Conversion Kit Includes:

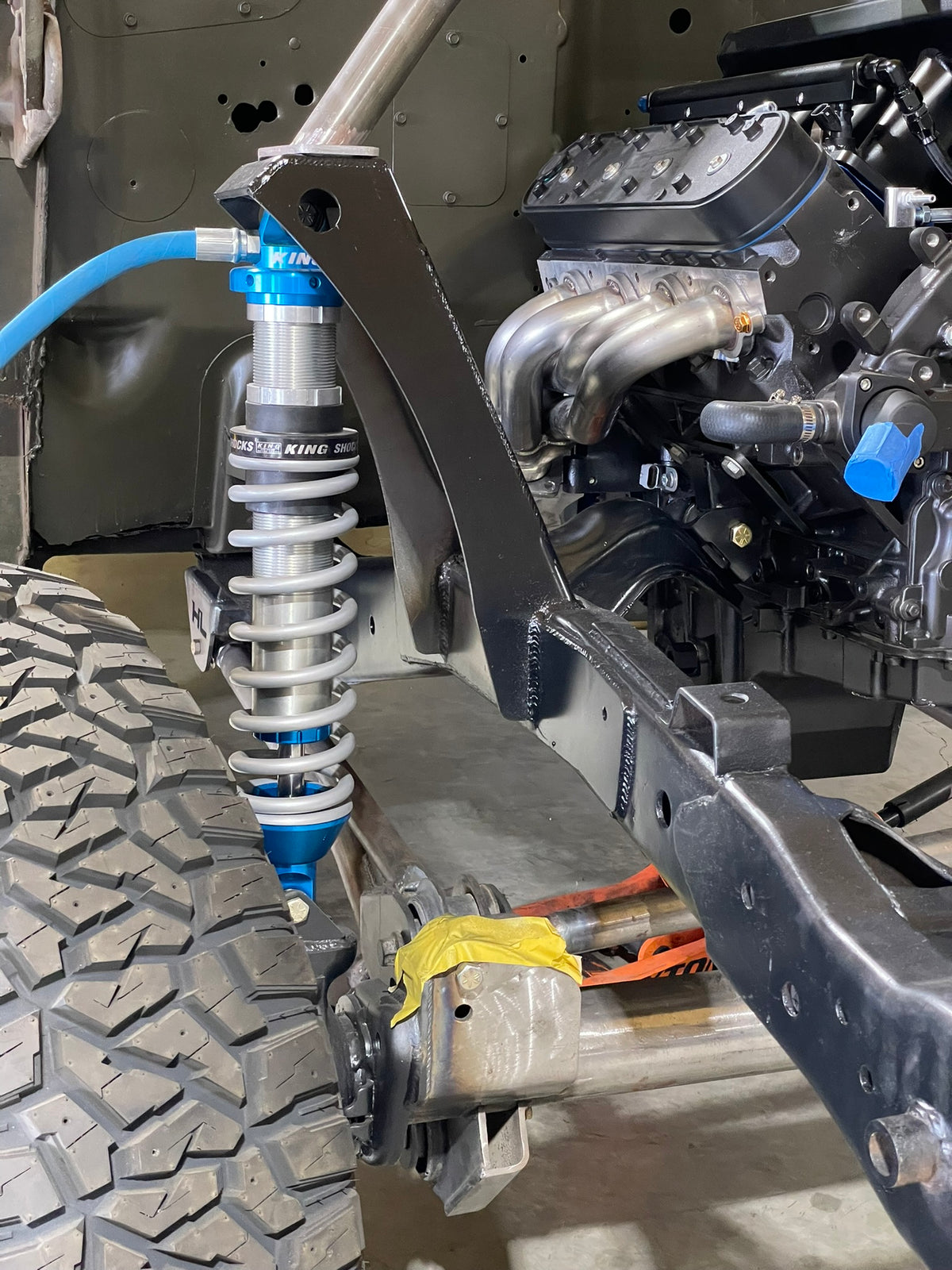

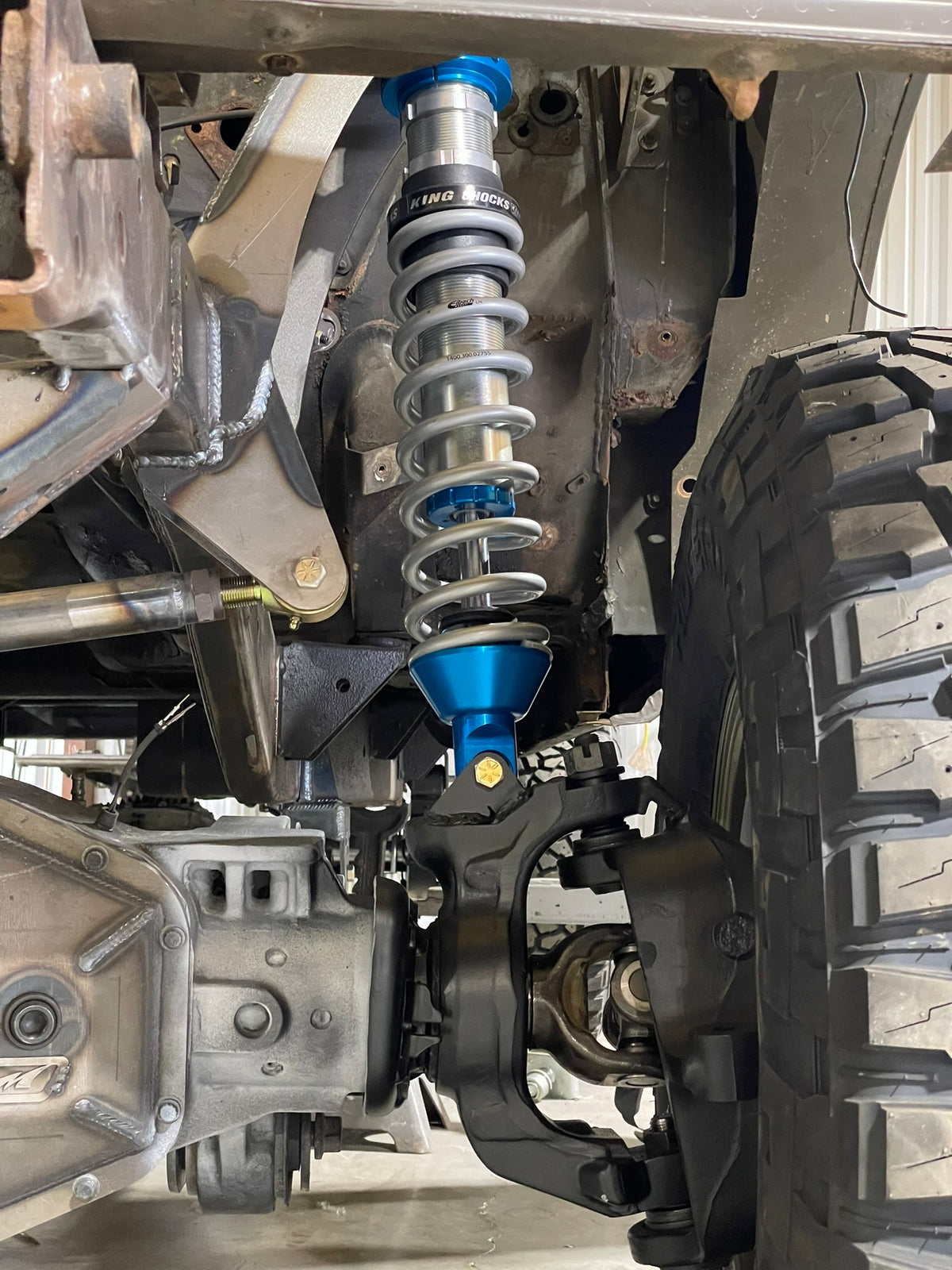

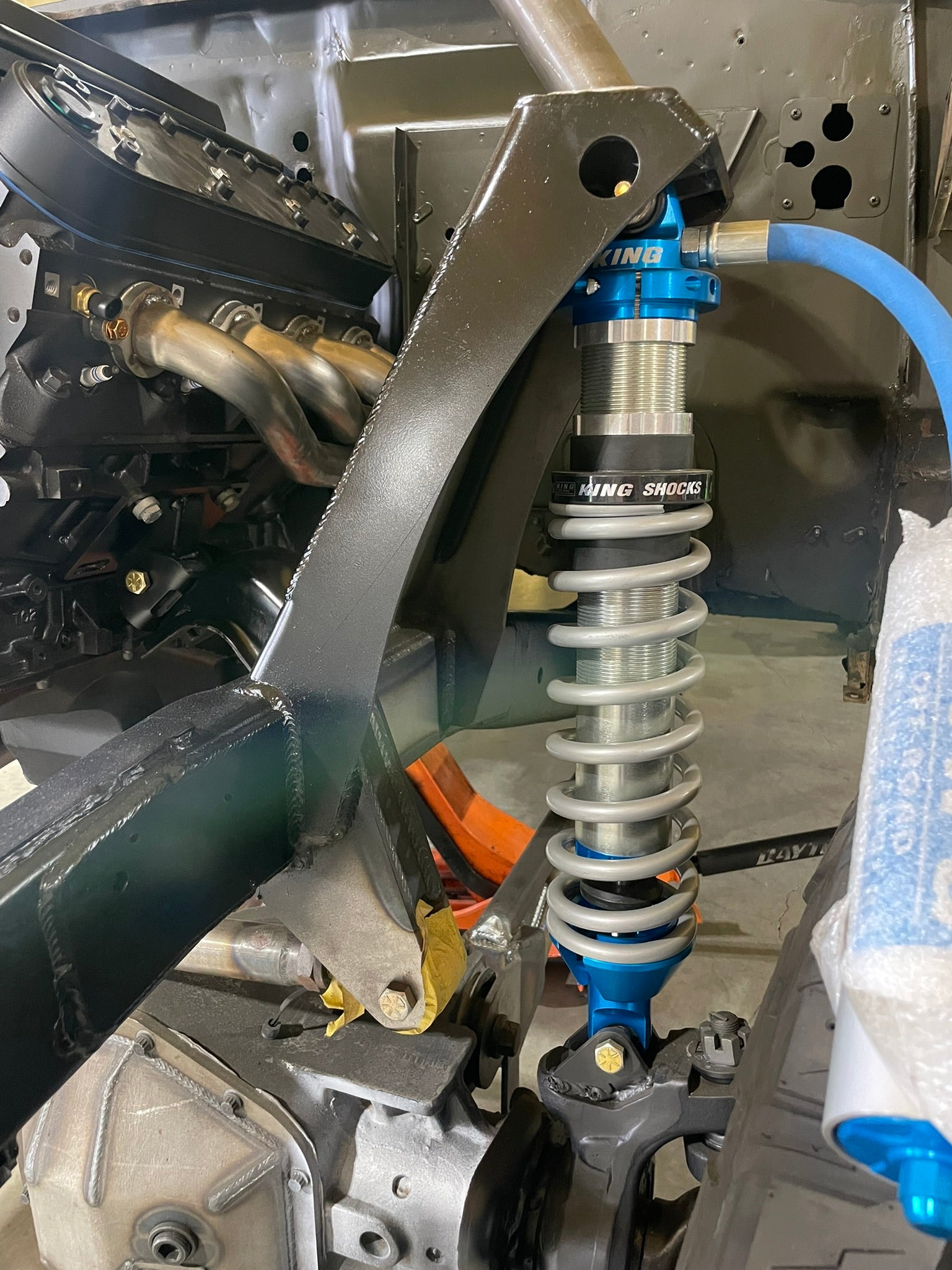

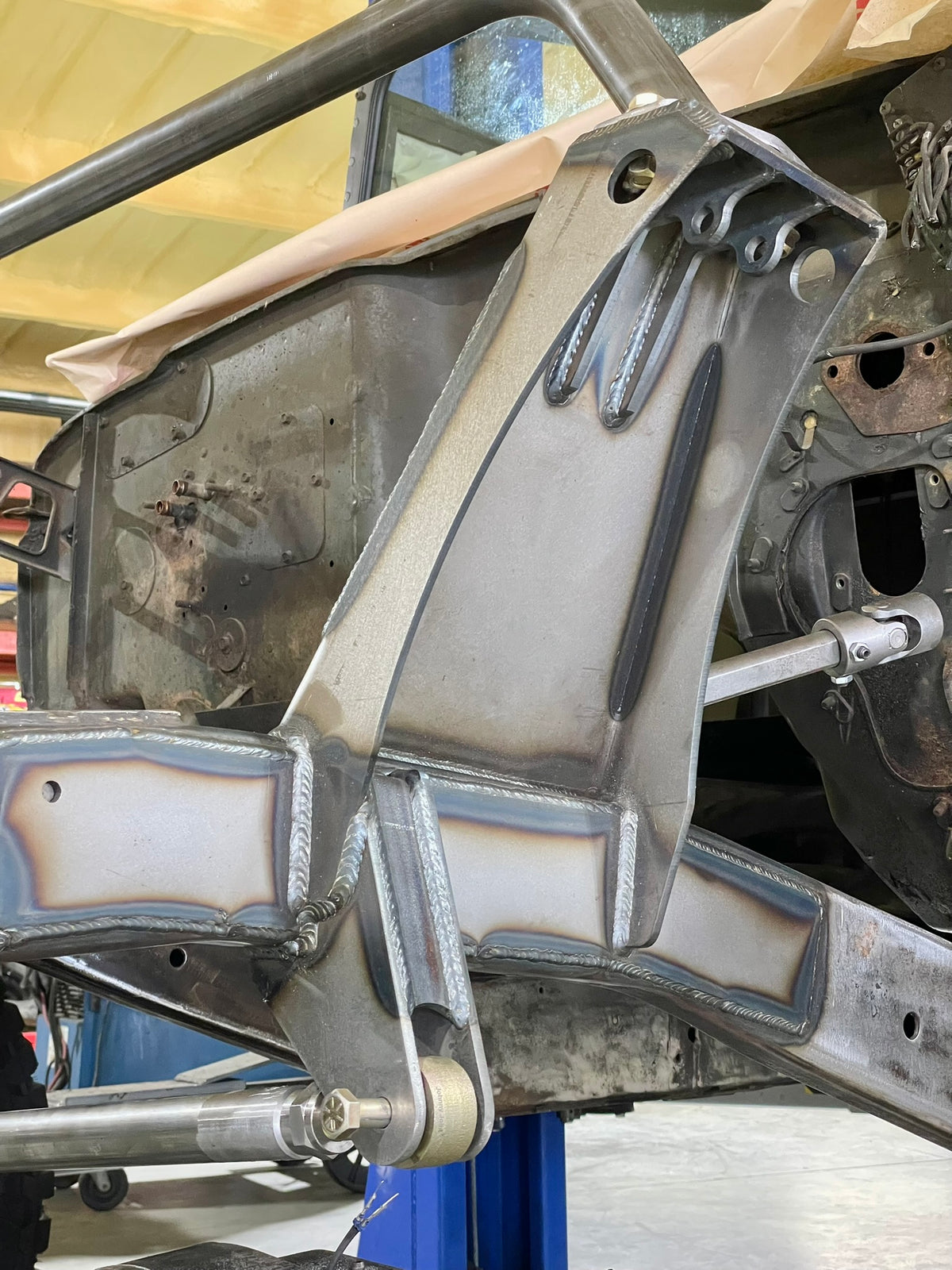

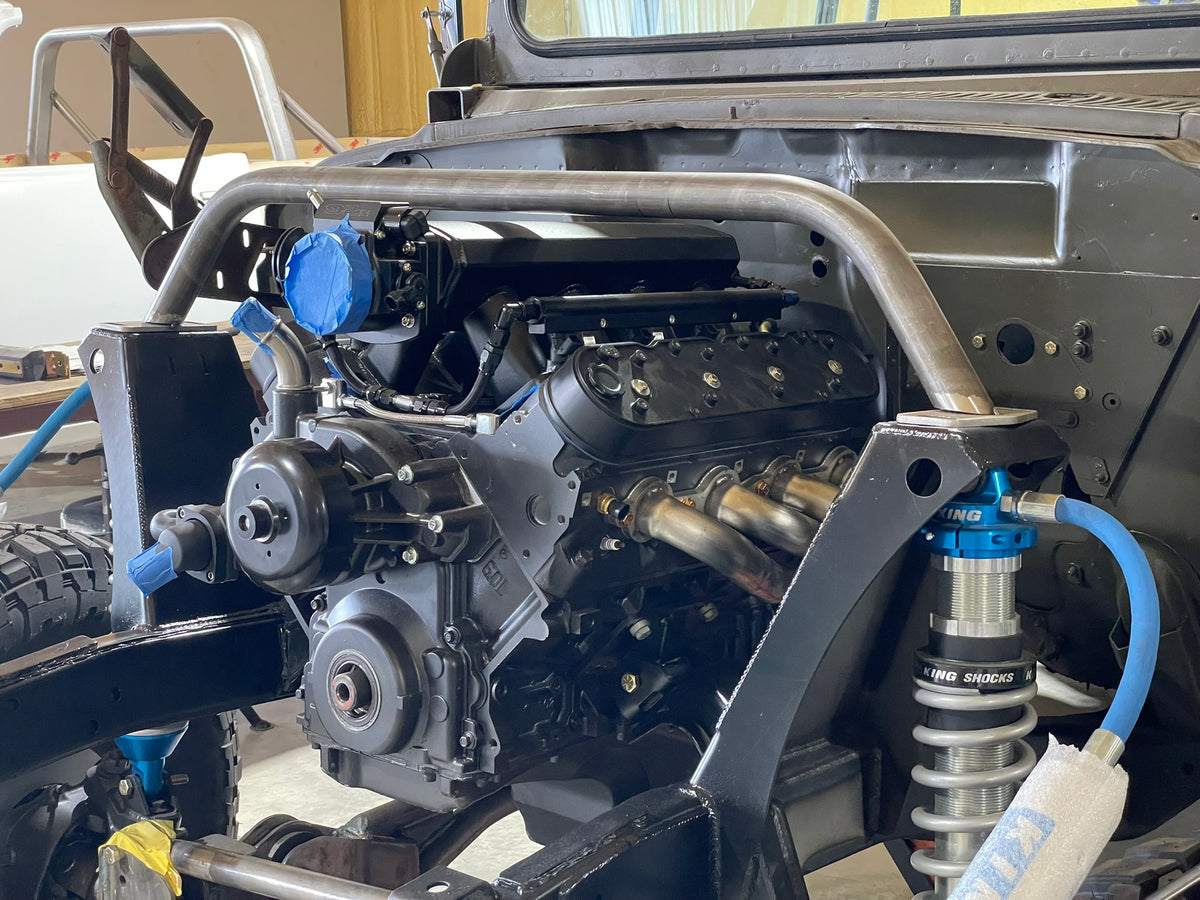

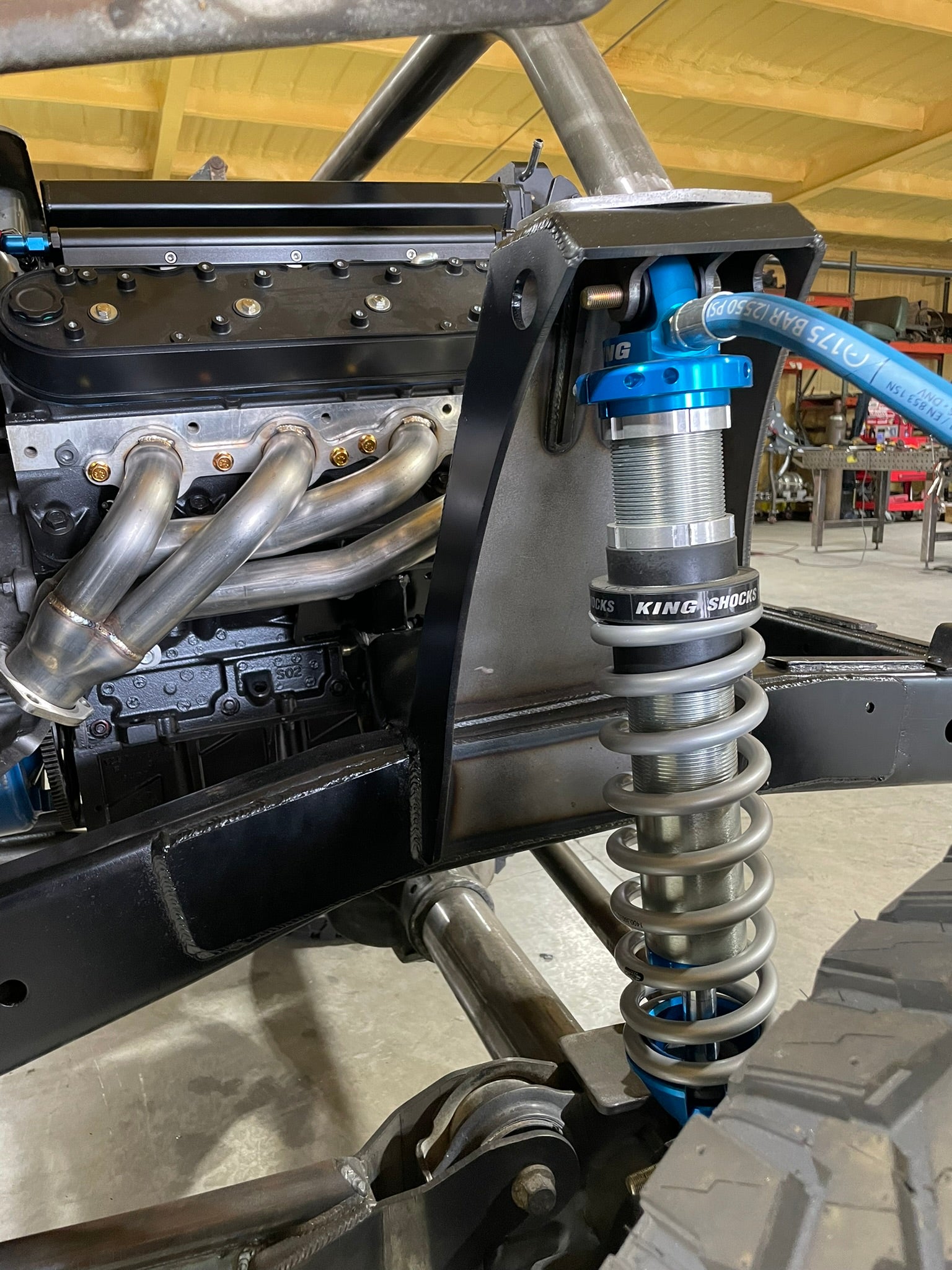

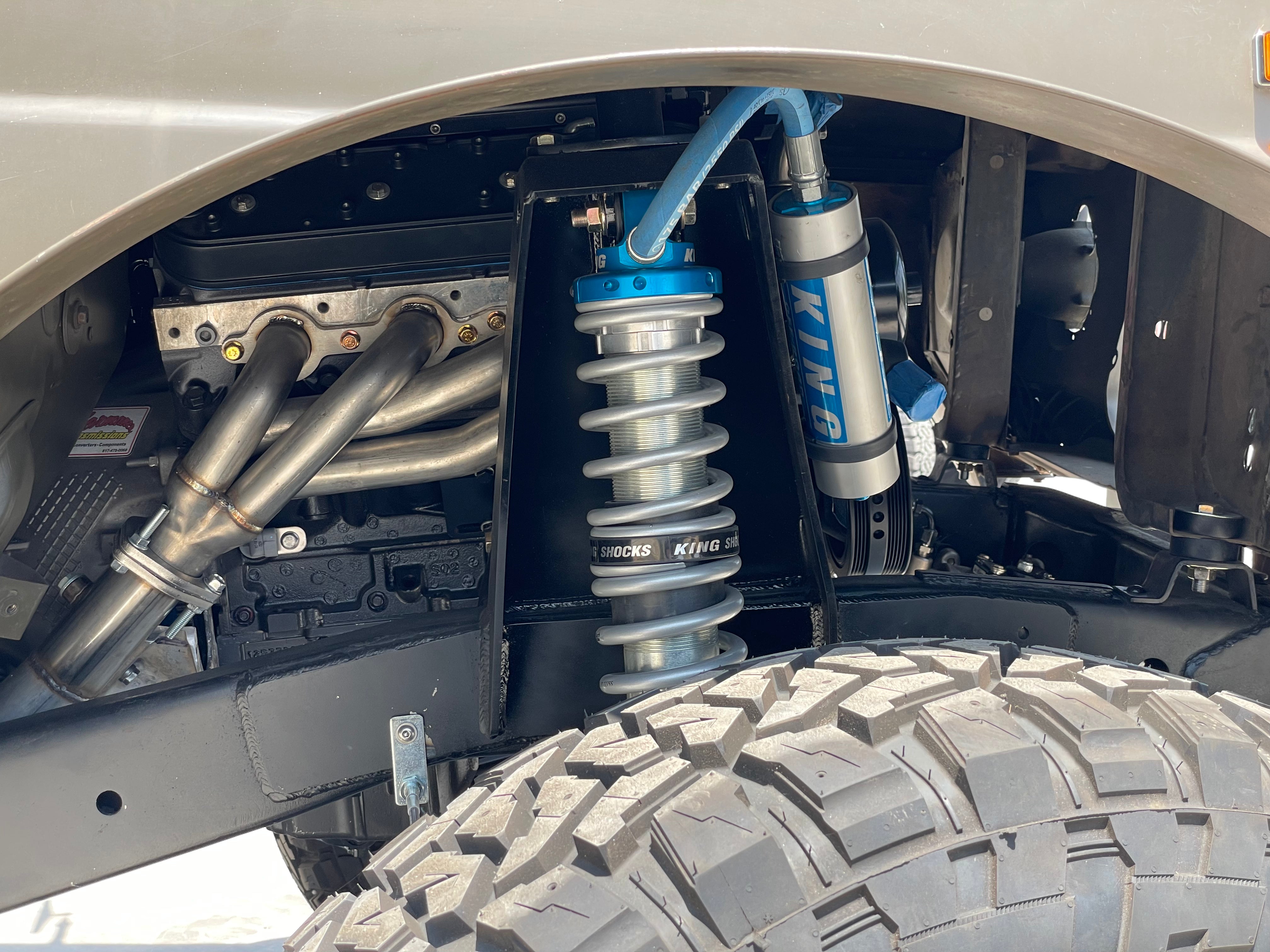

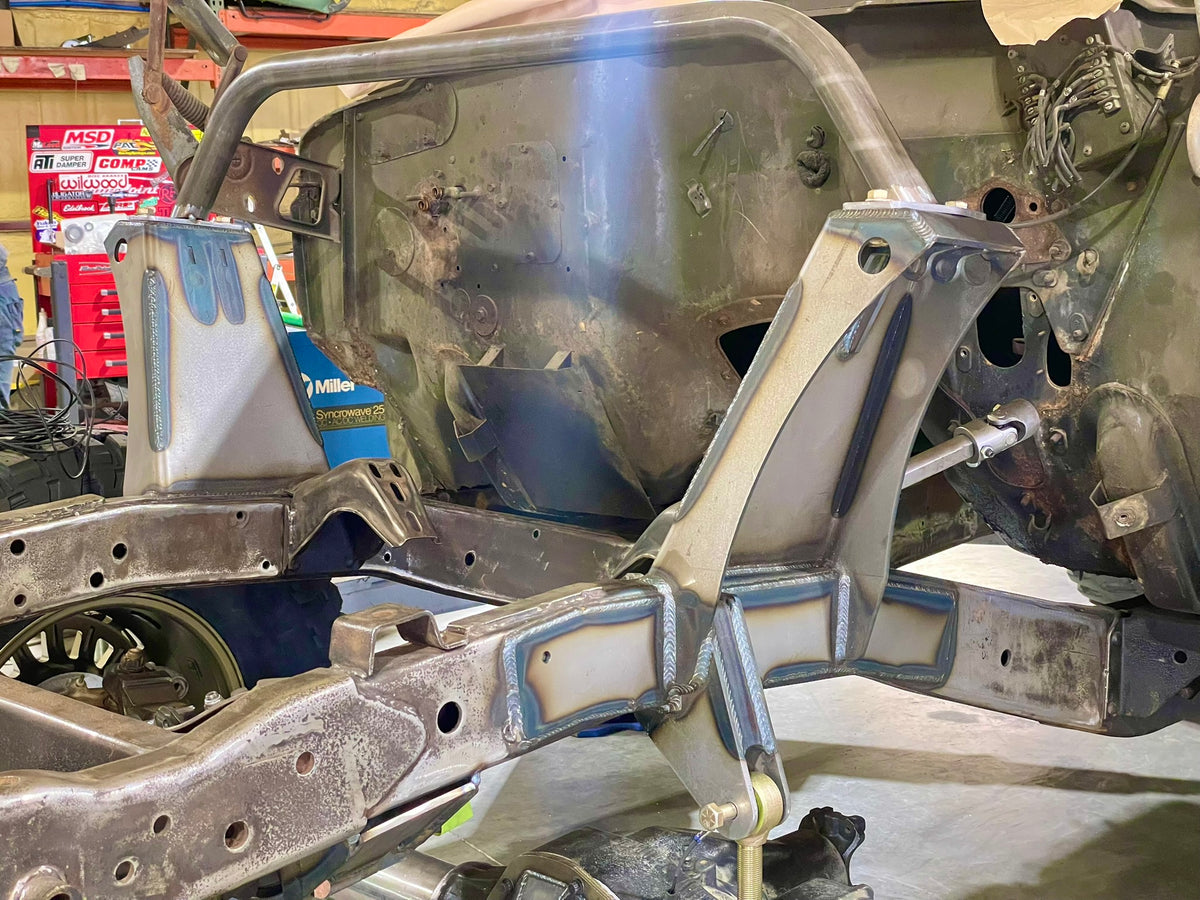

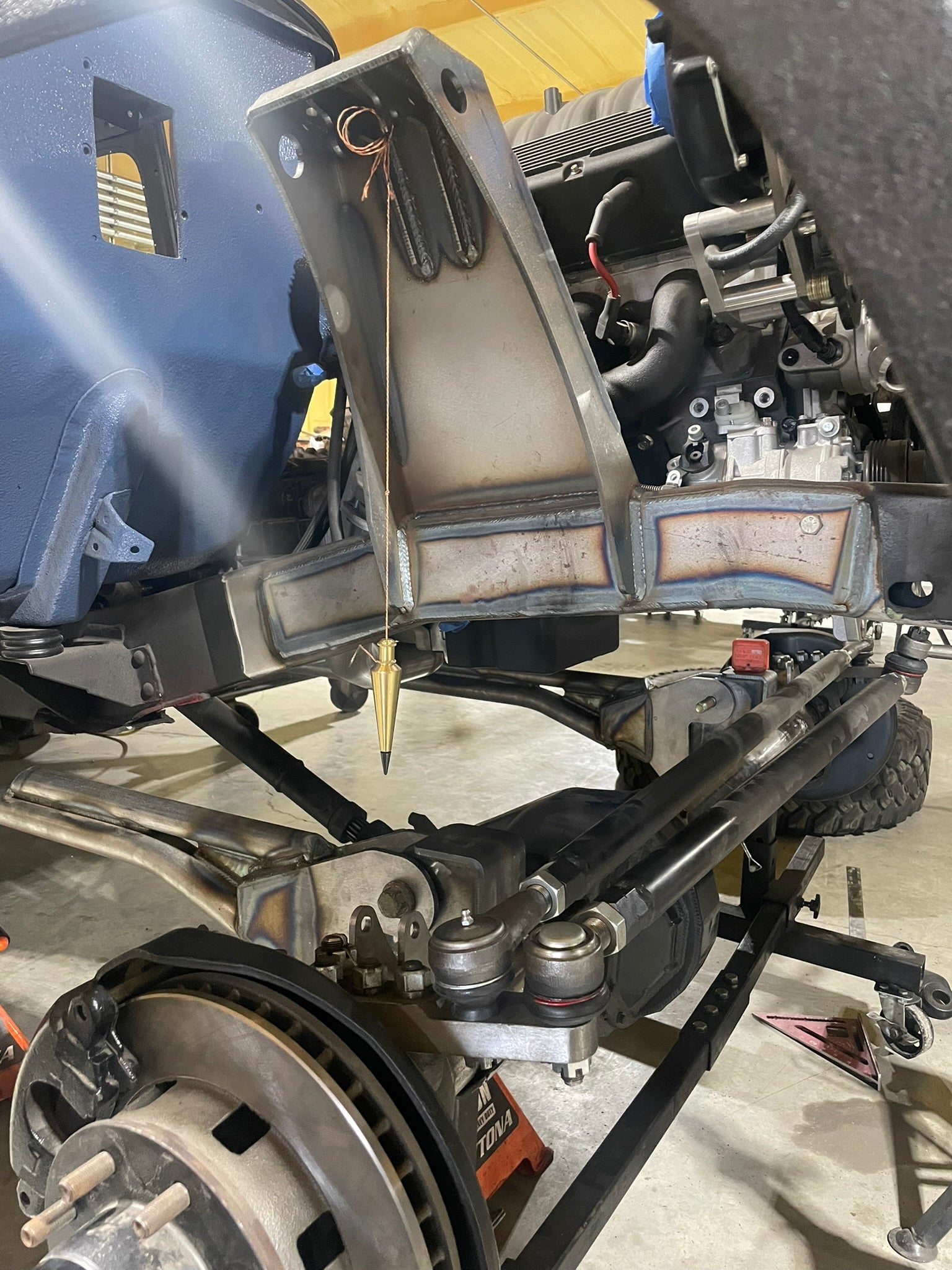

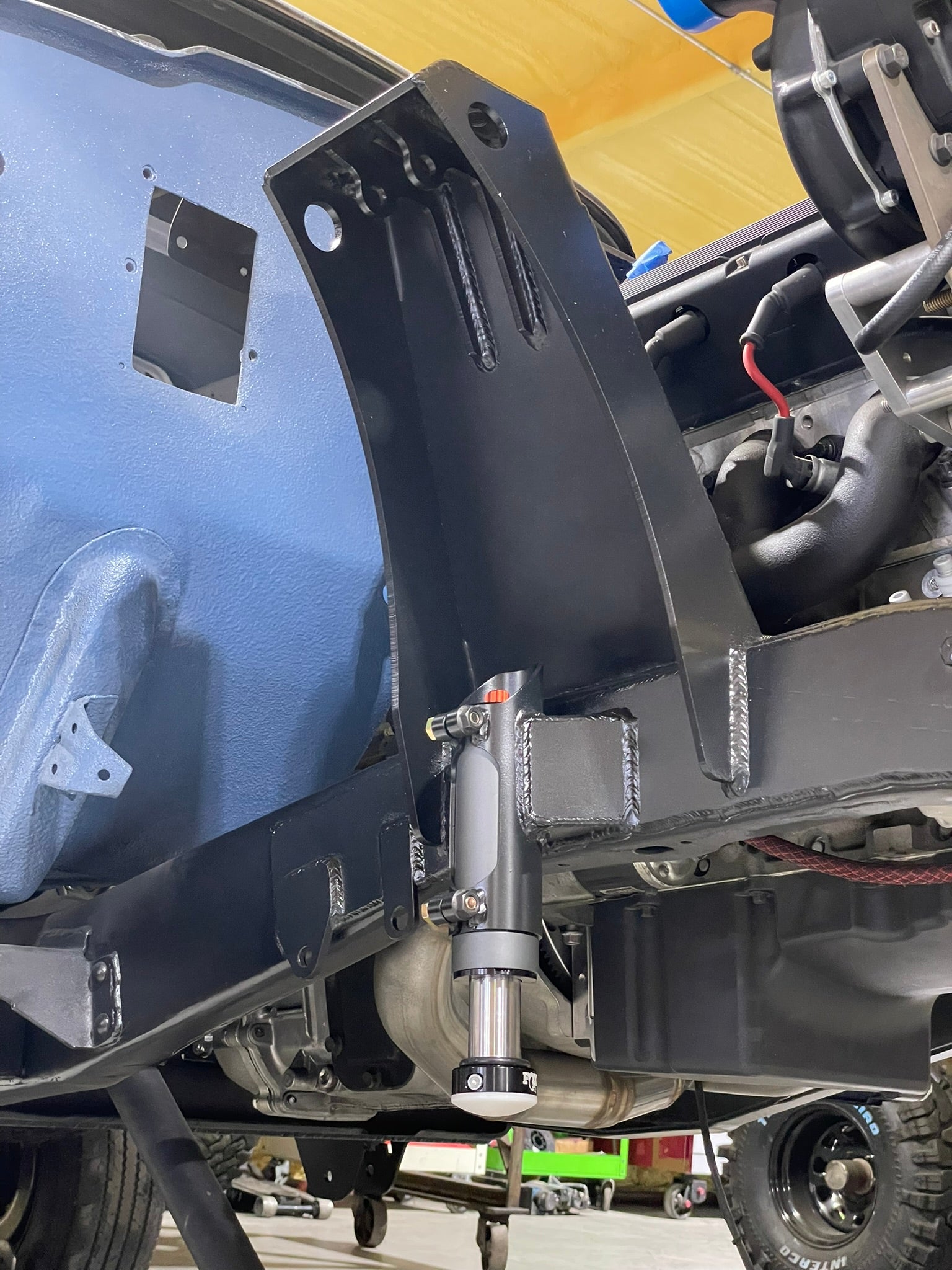

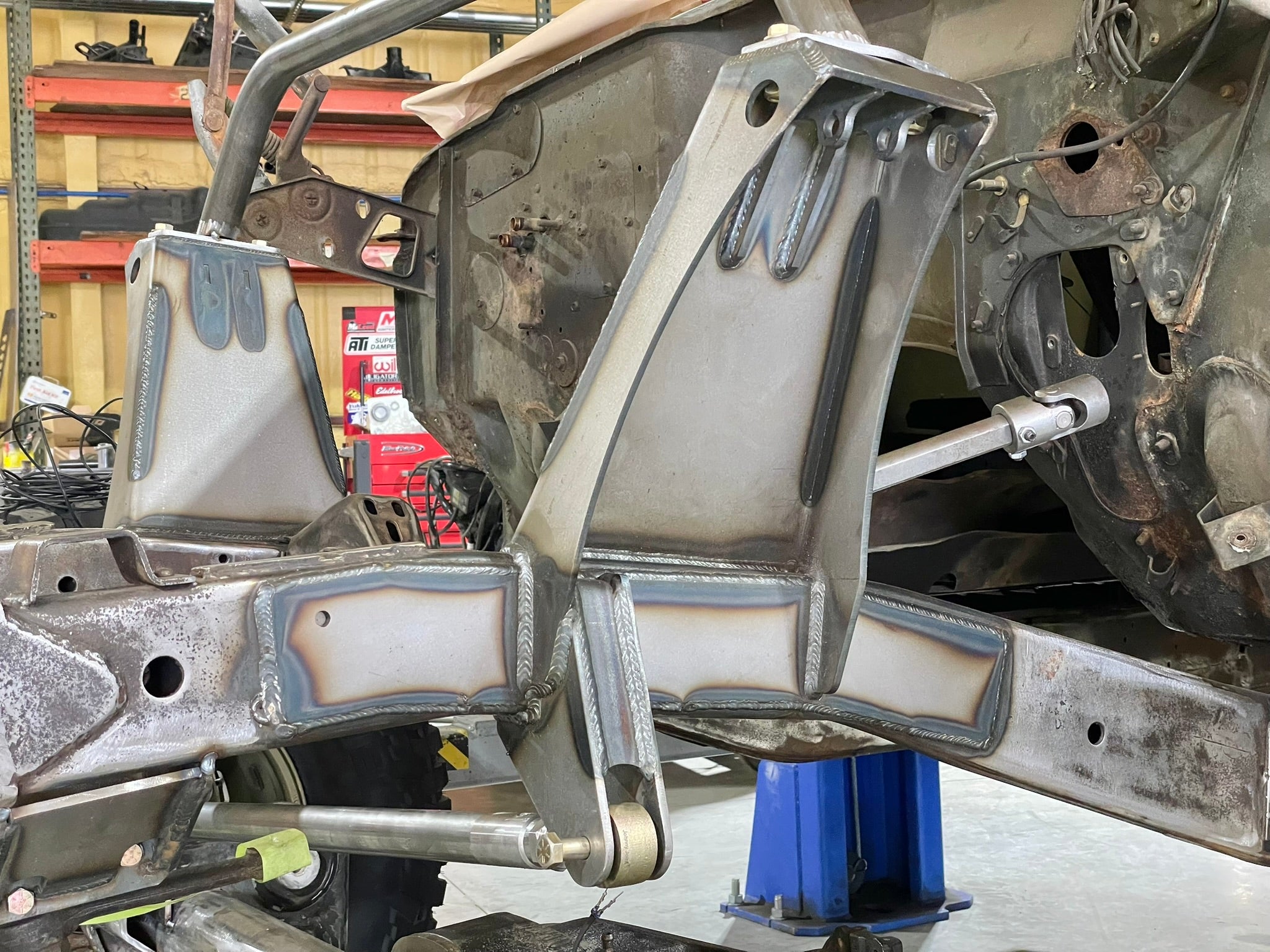

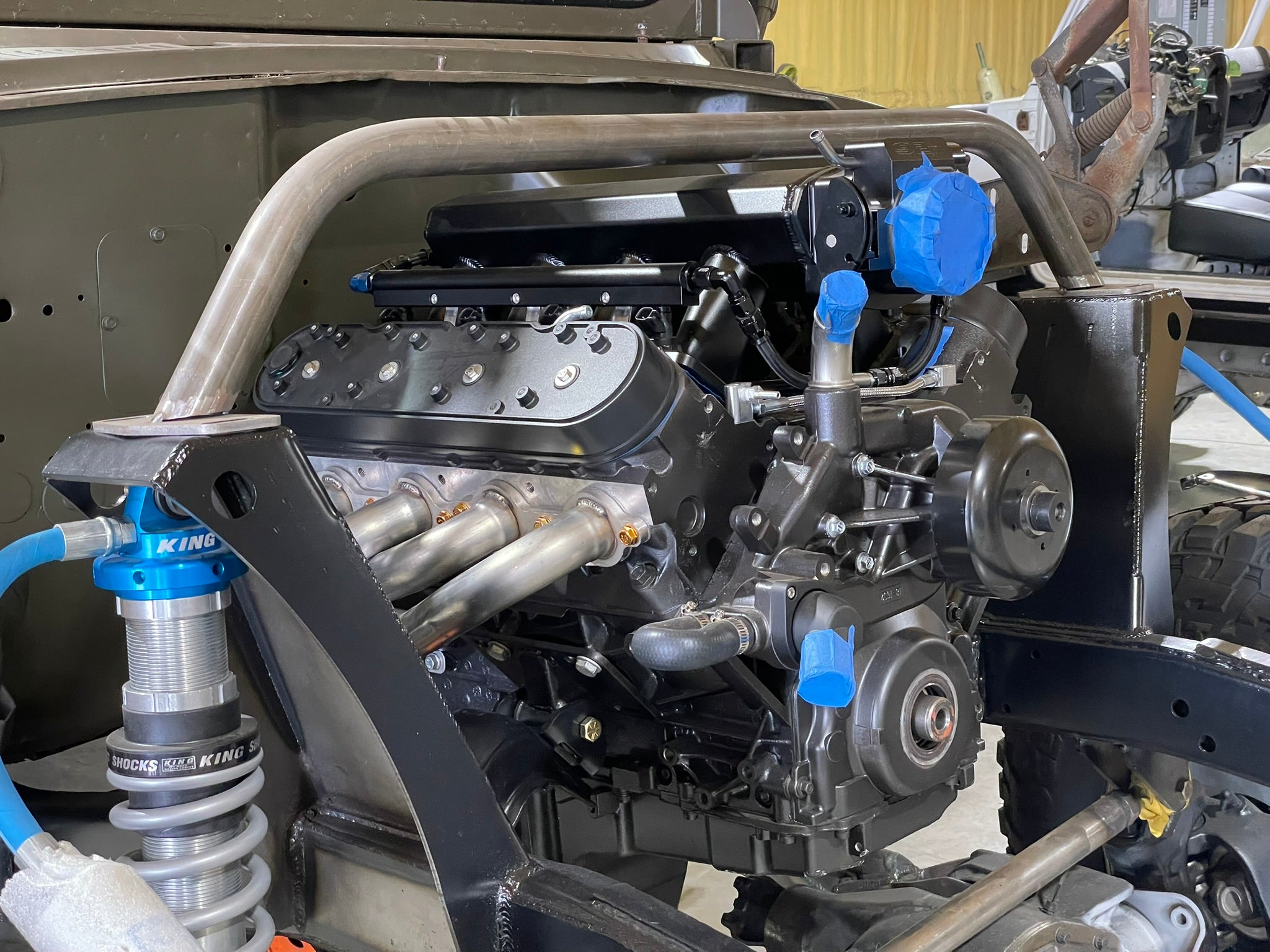

- Two coilover towers (weld On).
- One coilover tower support cross bar assembly (round DOM tube).

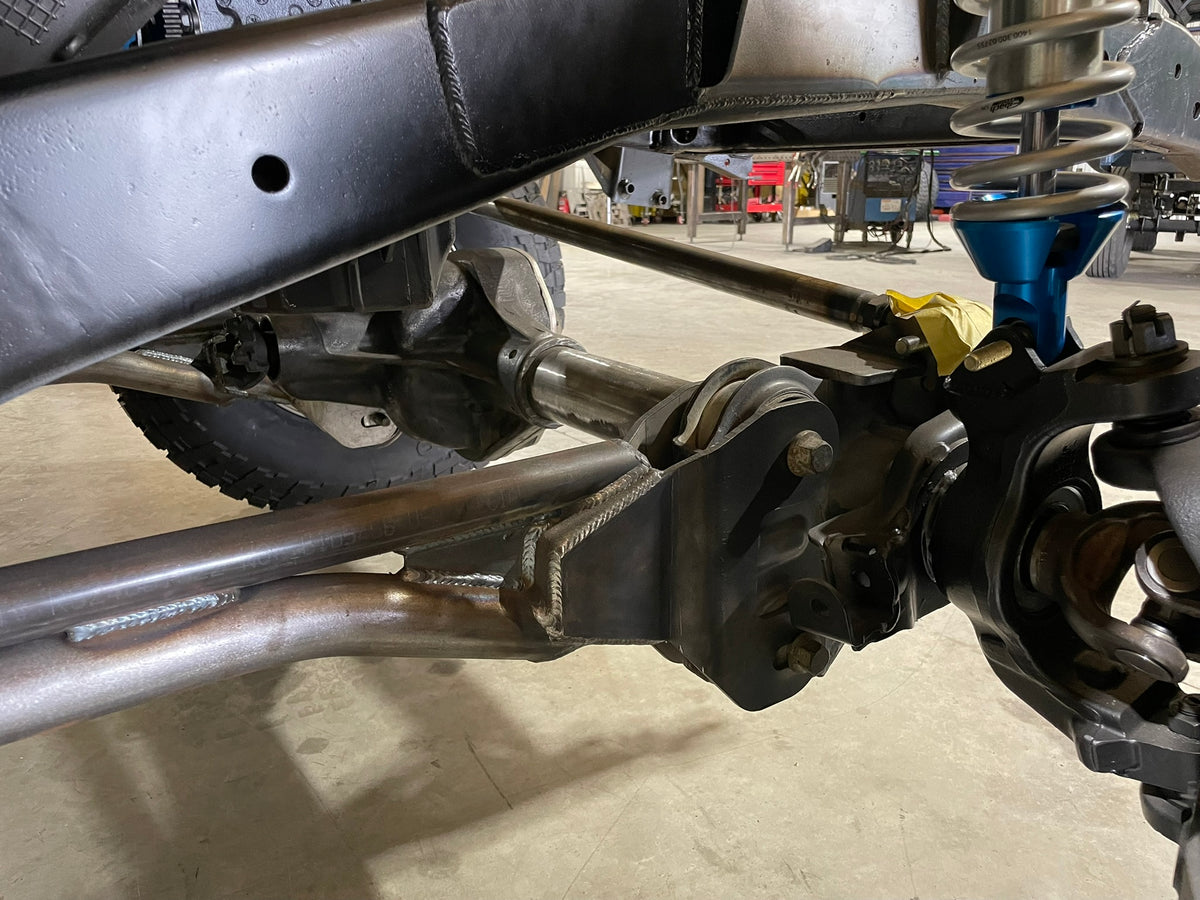

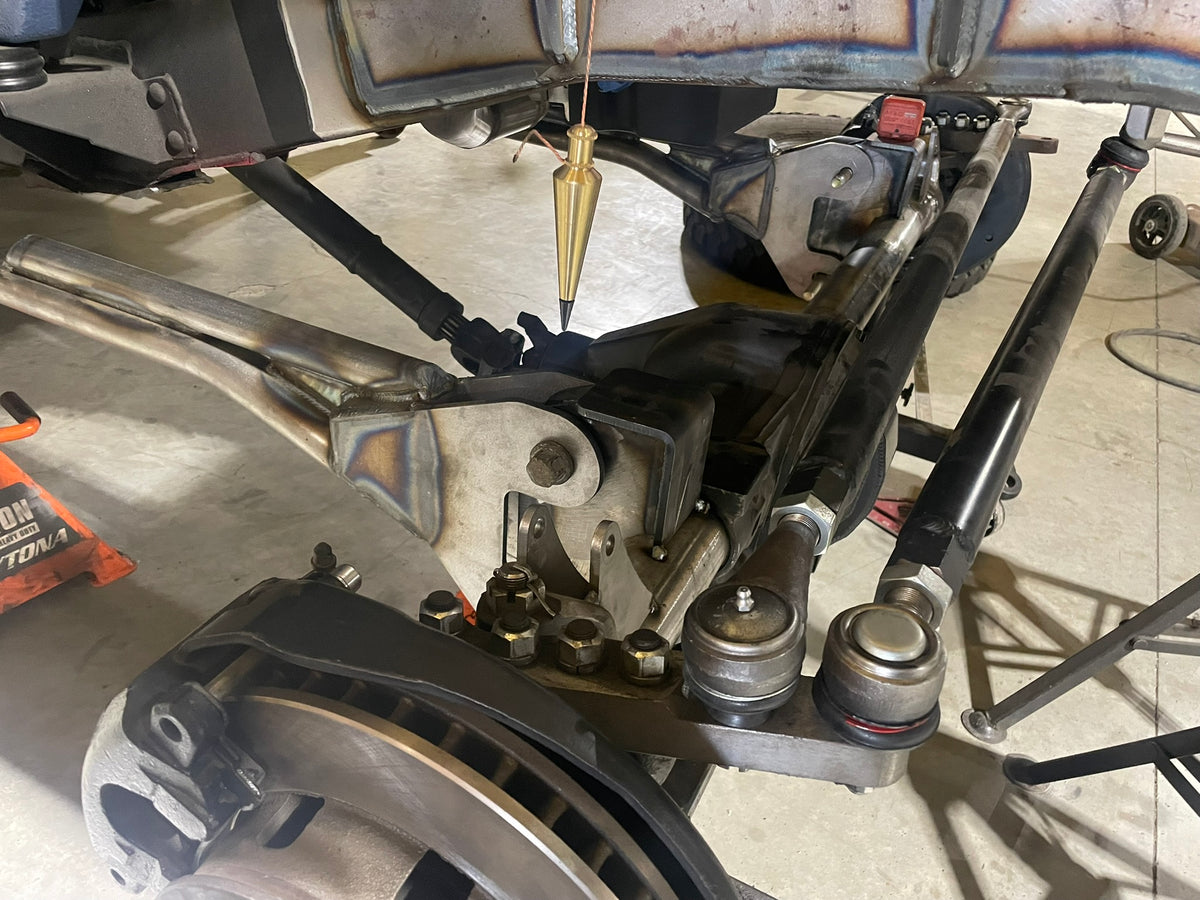

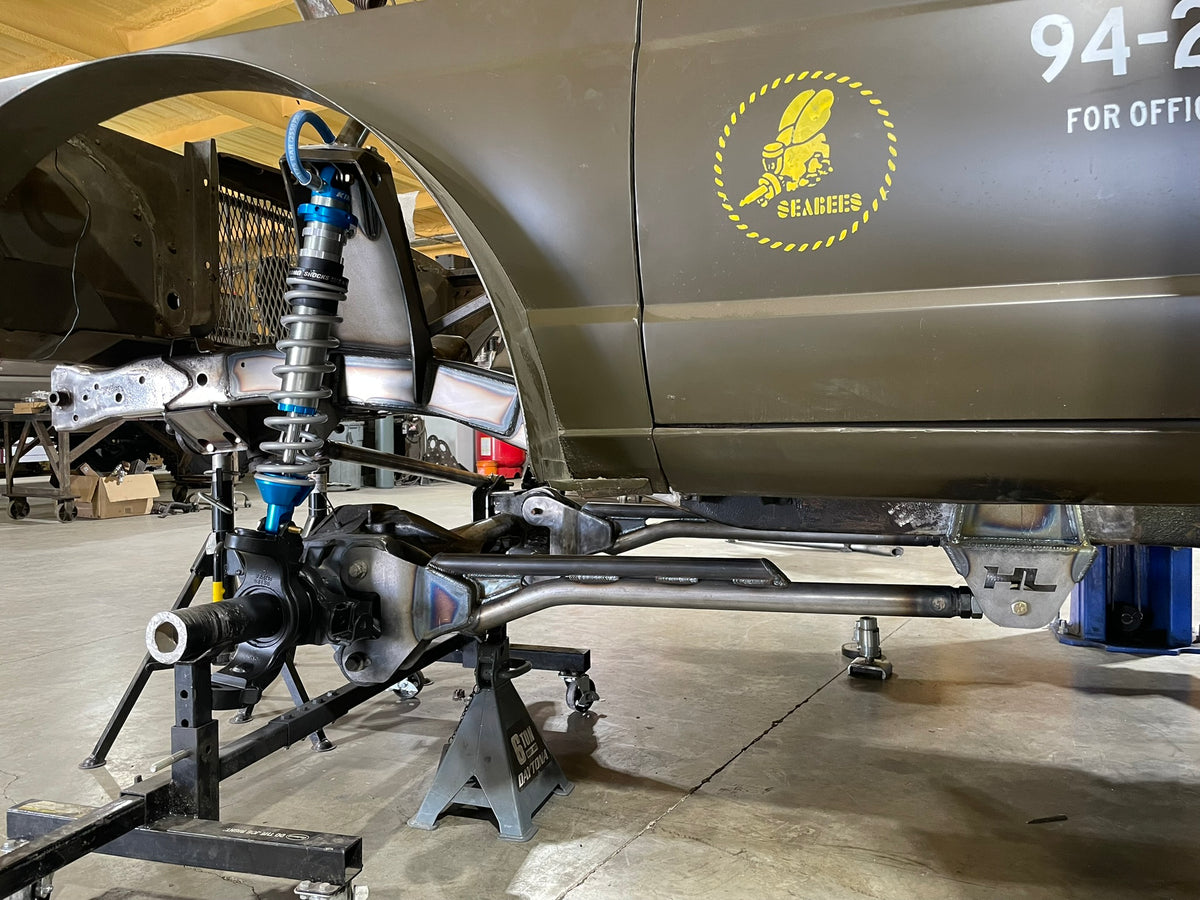

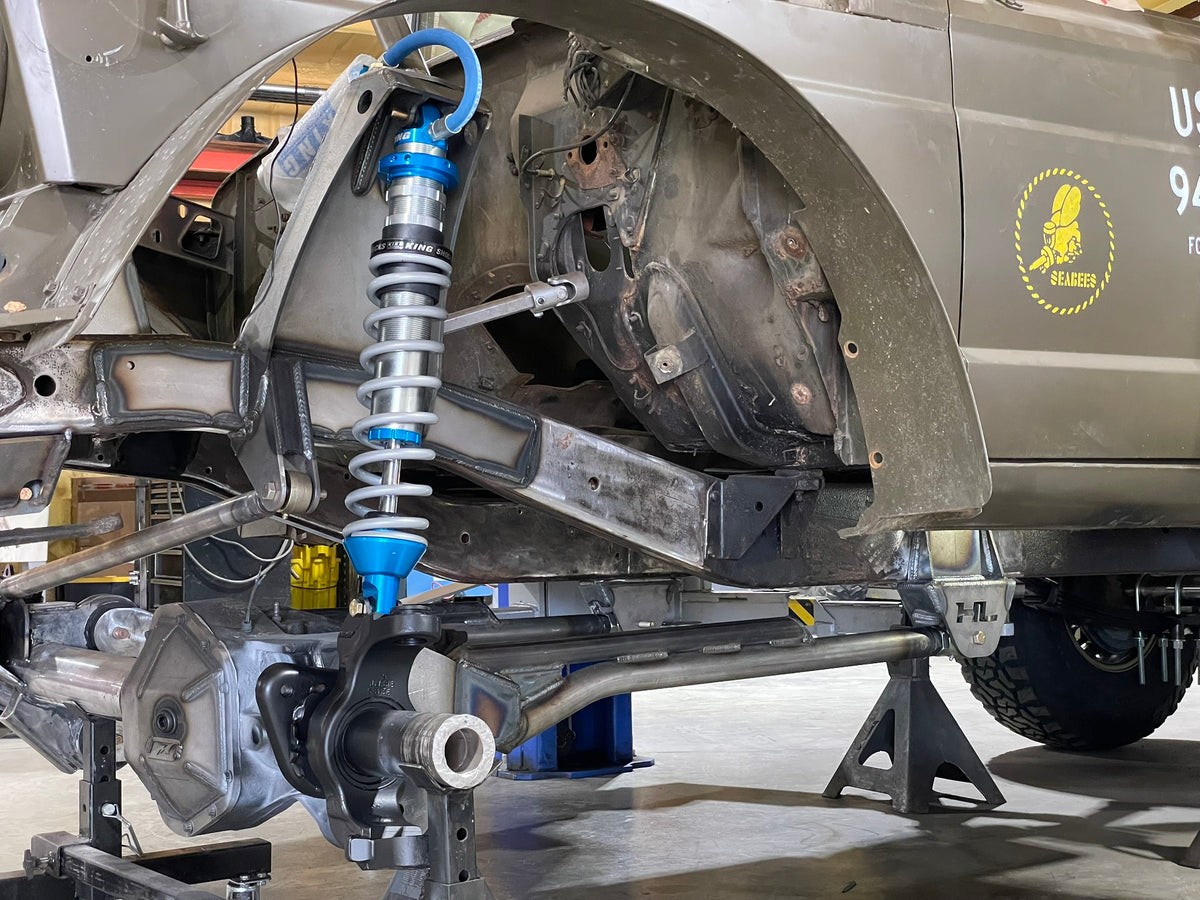

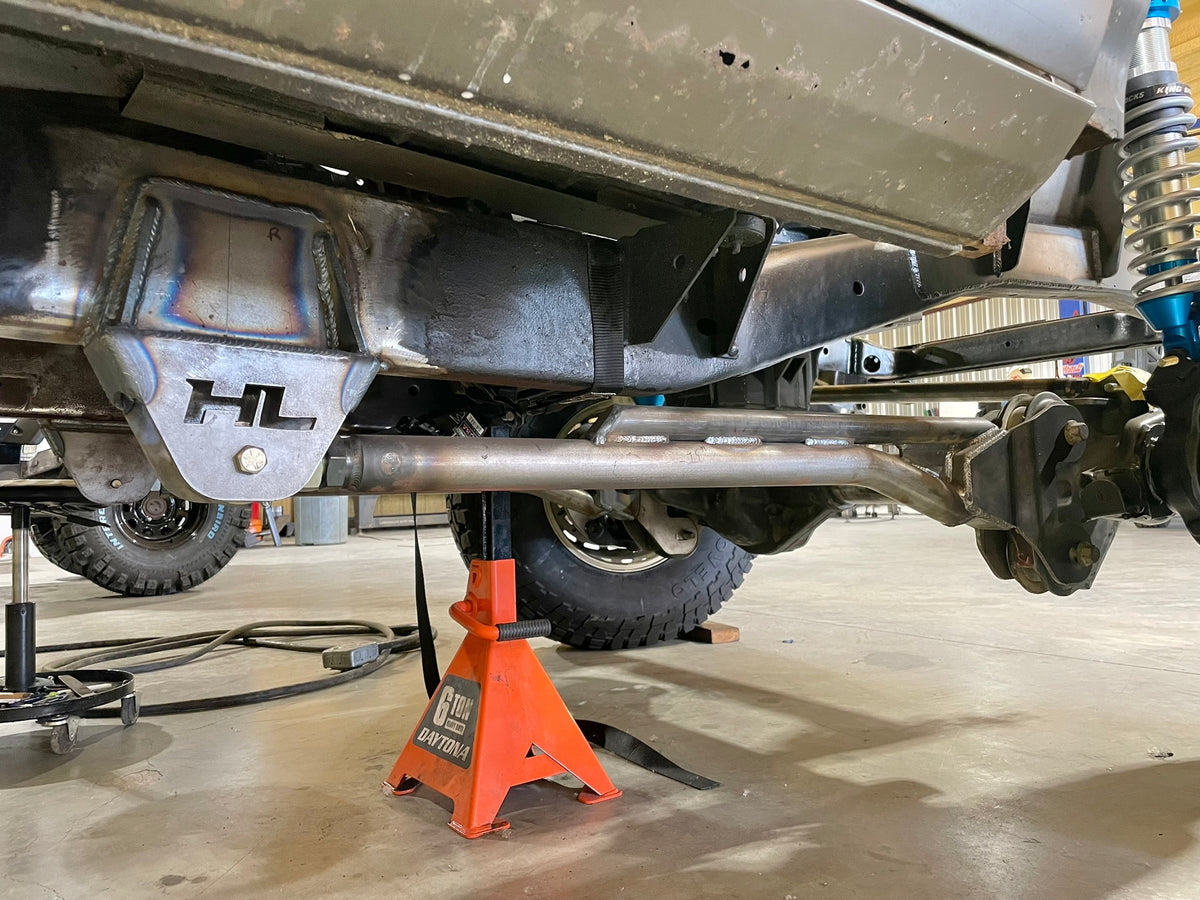

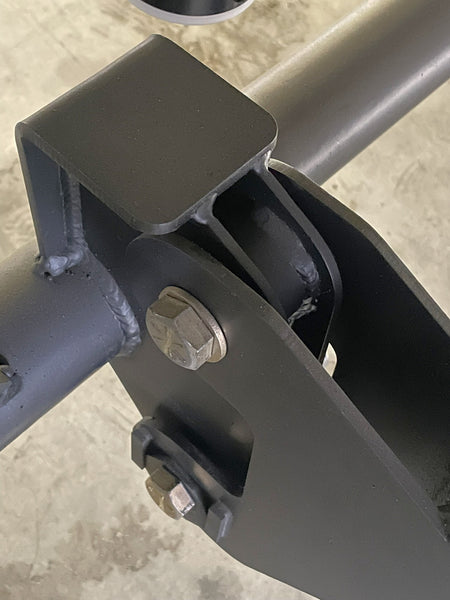

- Two extended length custom radius arms (longer than factory length). Includes two 1.25" Currie Johnny Joints with jam nuts.

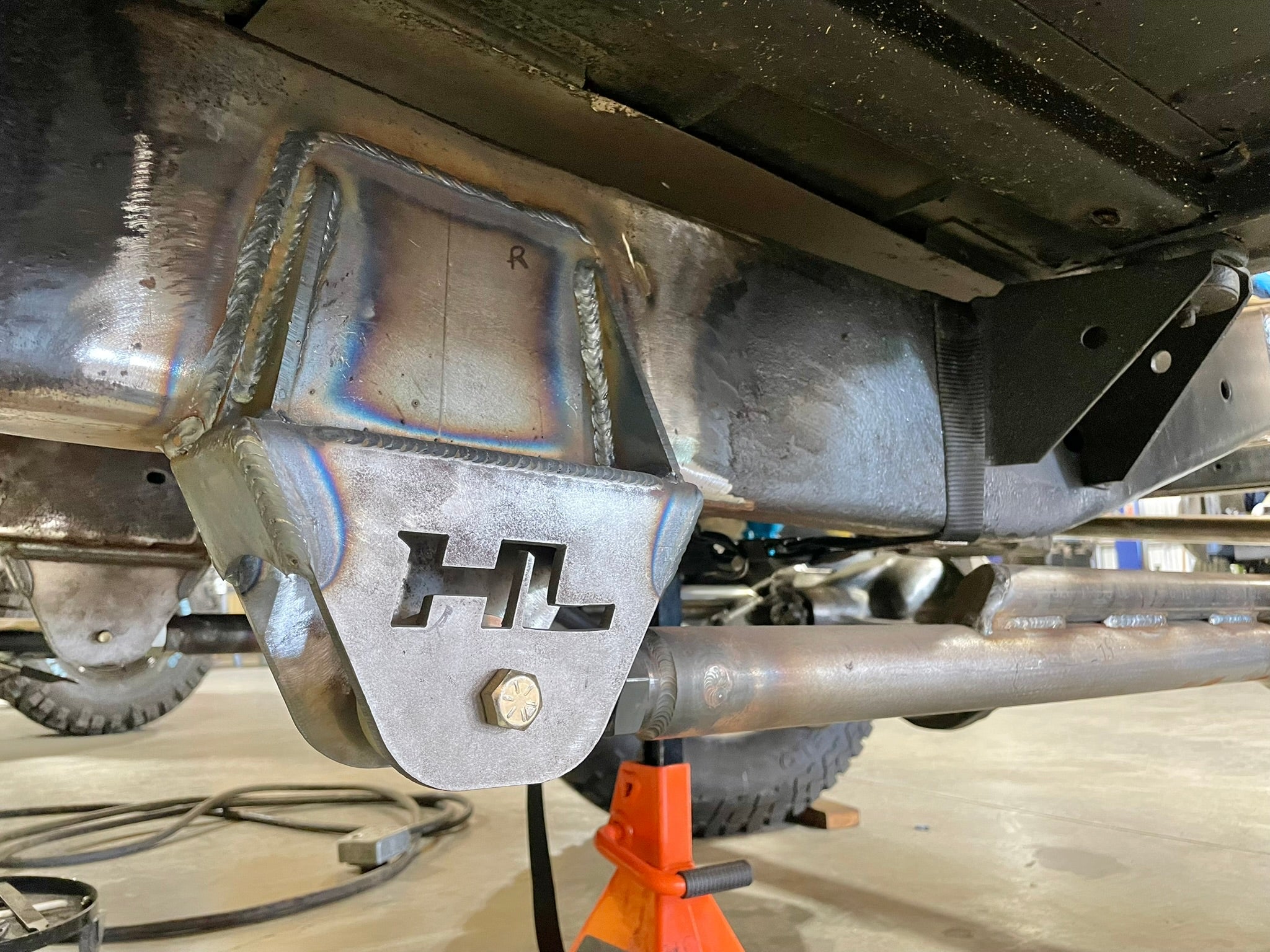

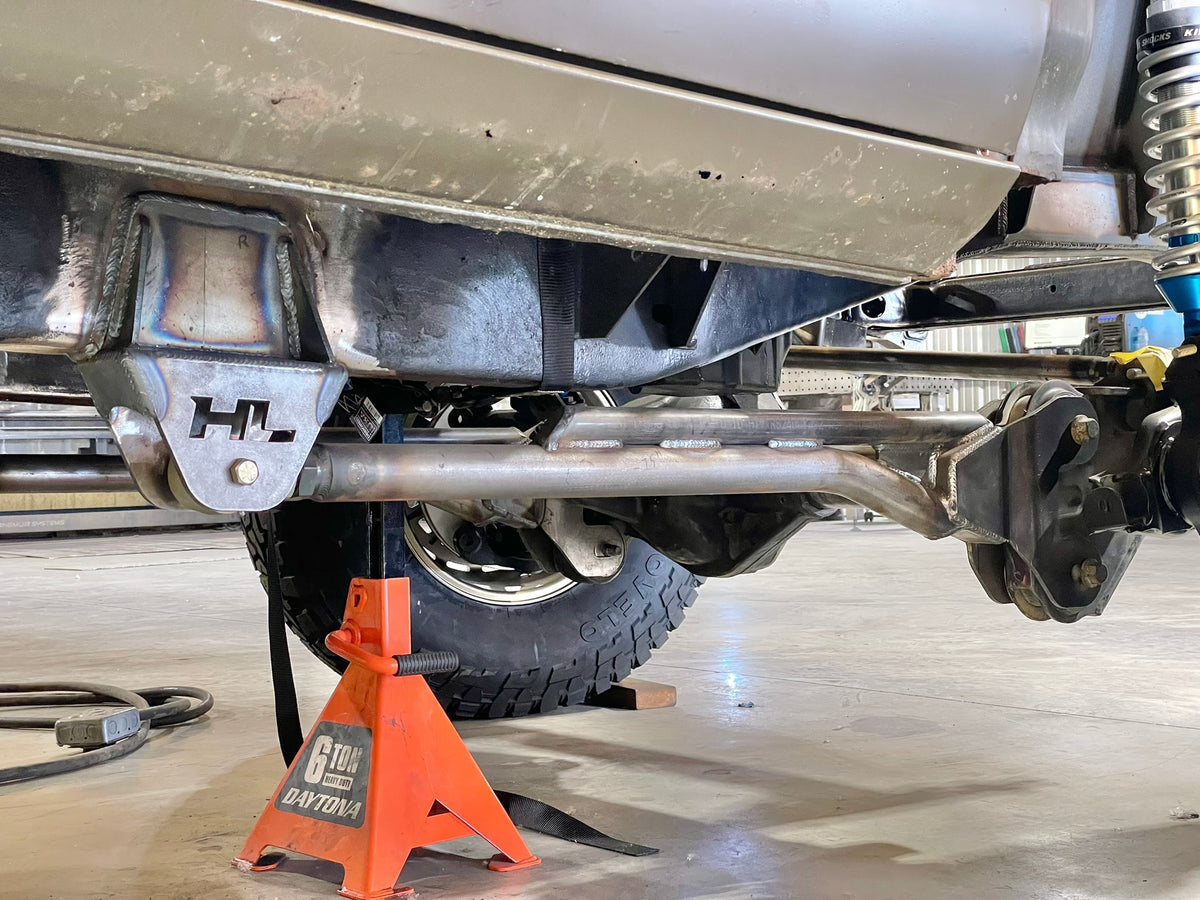

- Two radius arm to frame mounts (weld on).

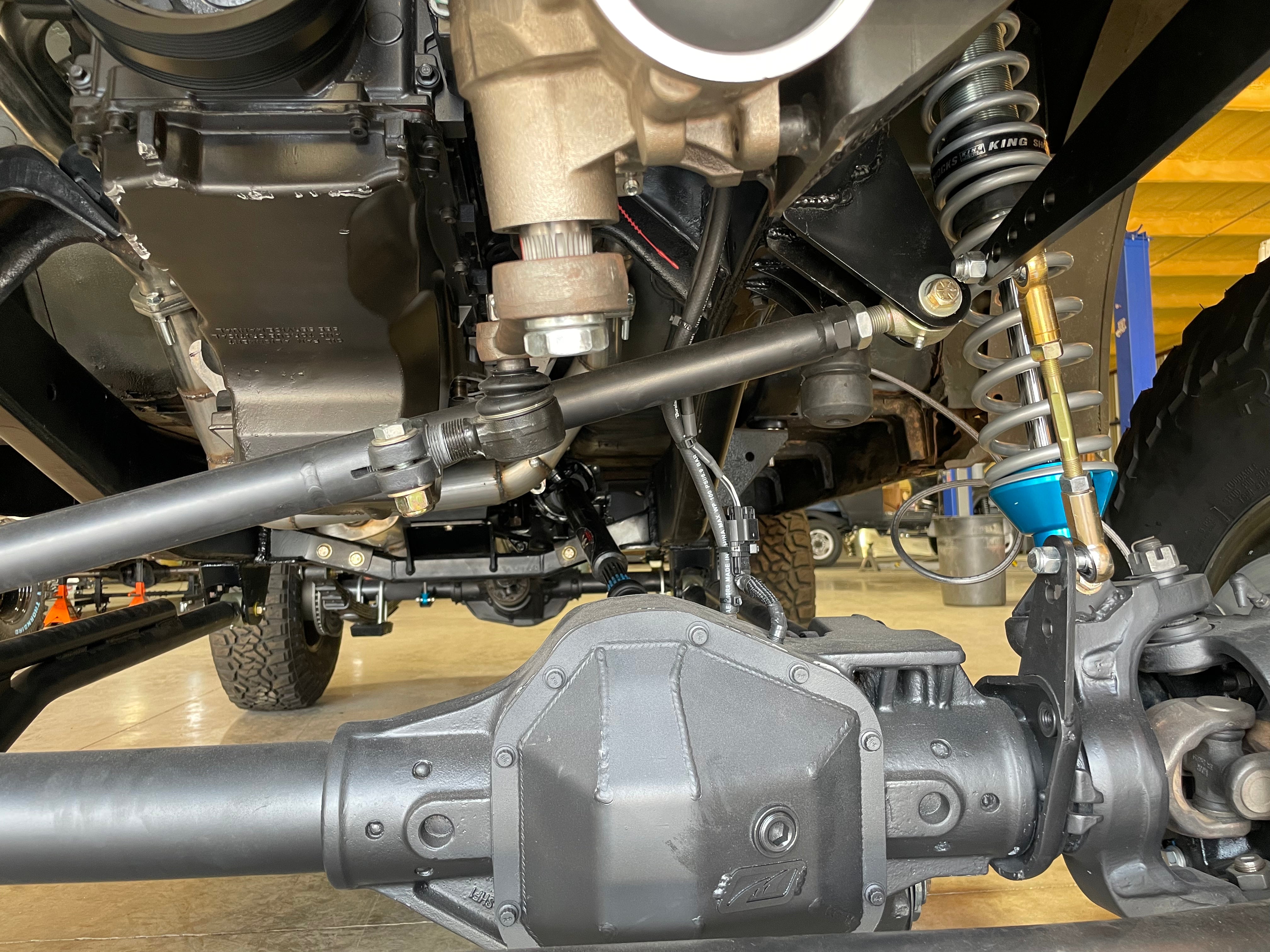

- One track bar (panhard bar). Includes two 7/8" Johnny Joints with jam nuts.

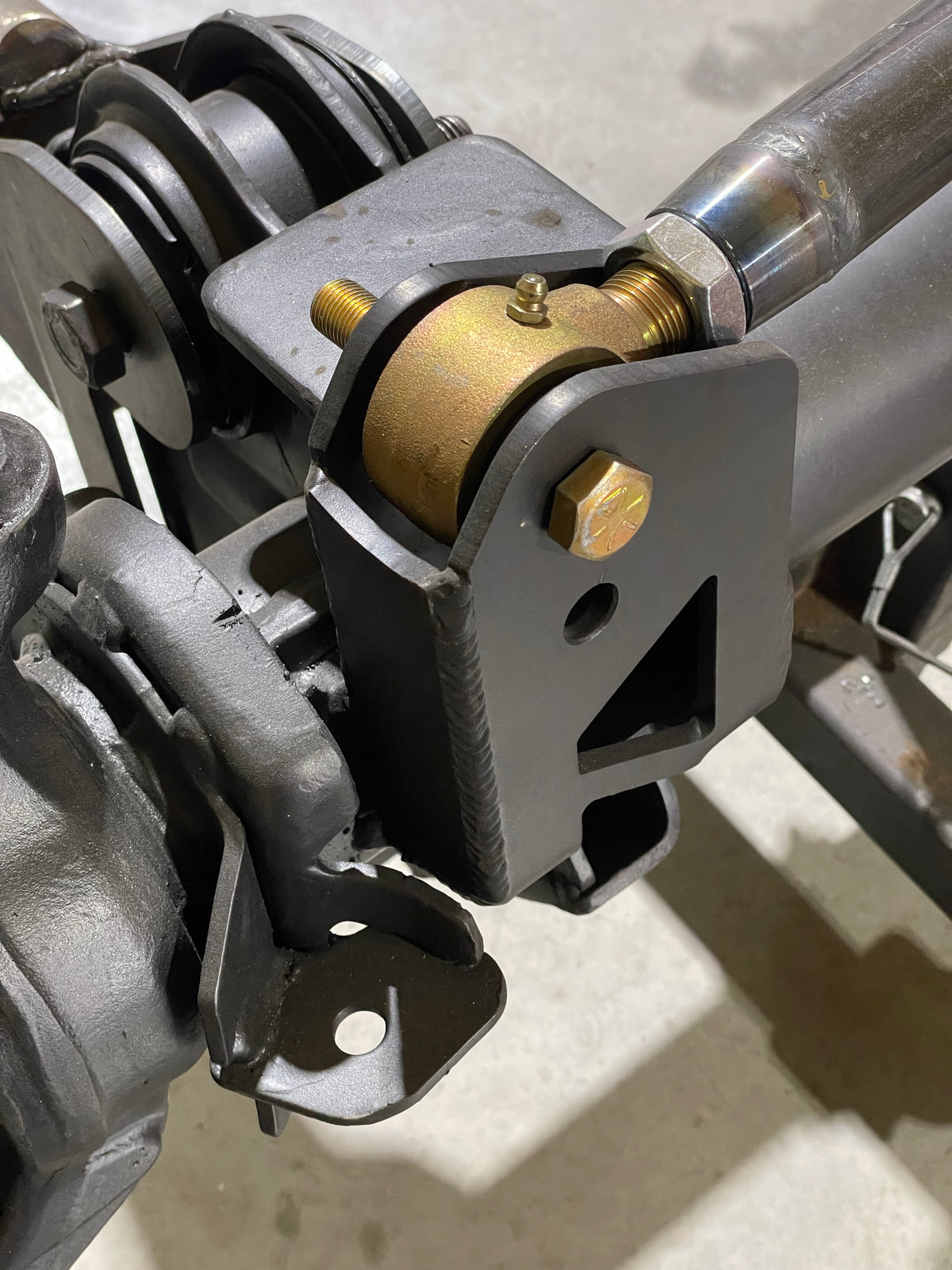

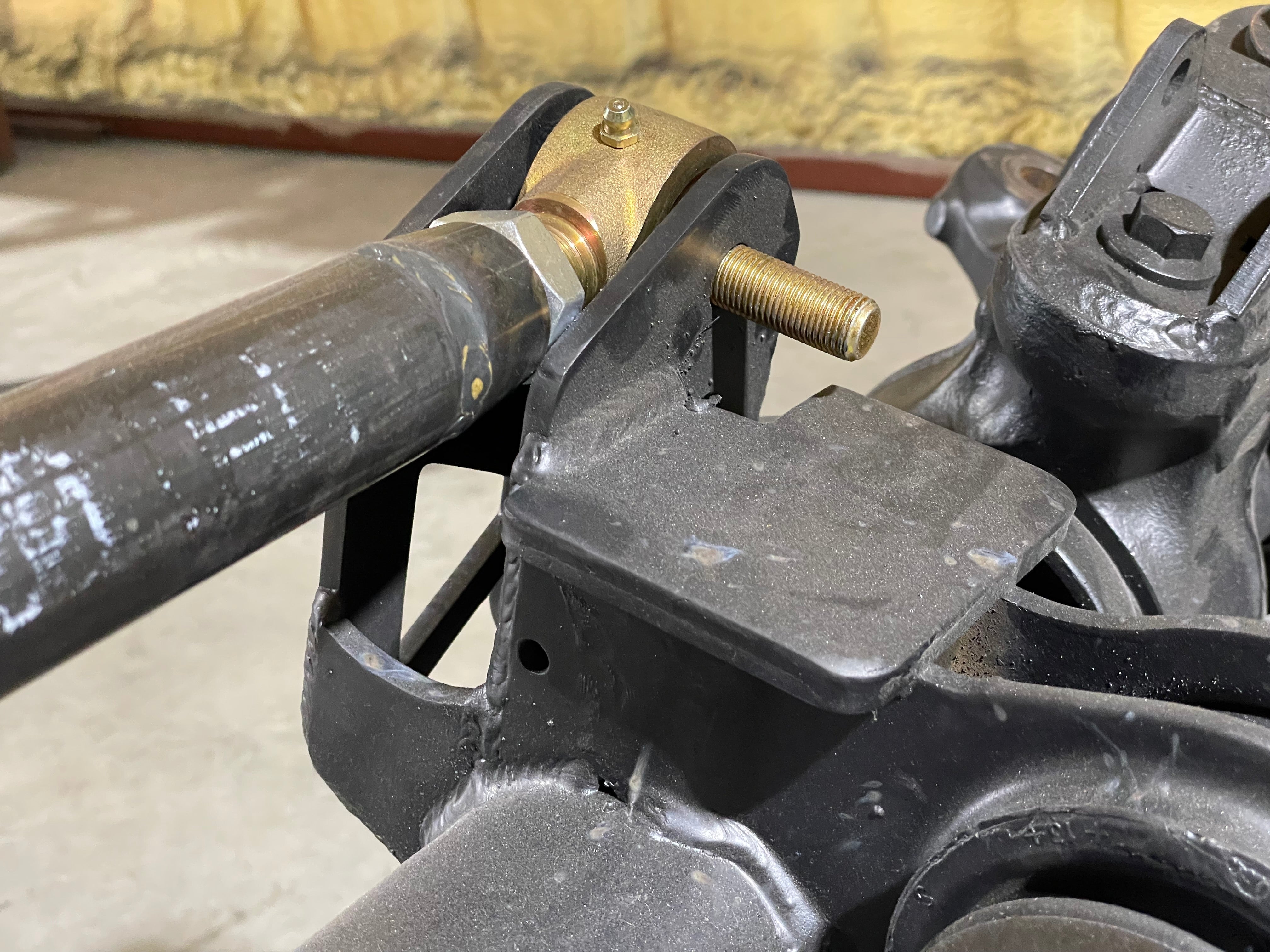

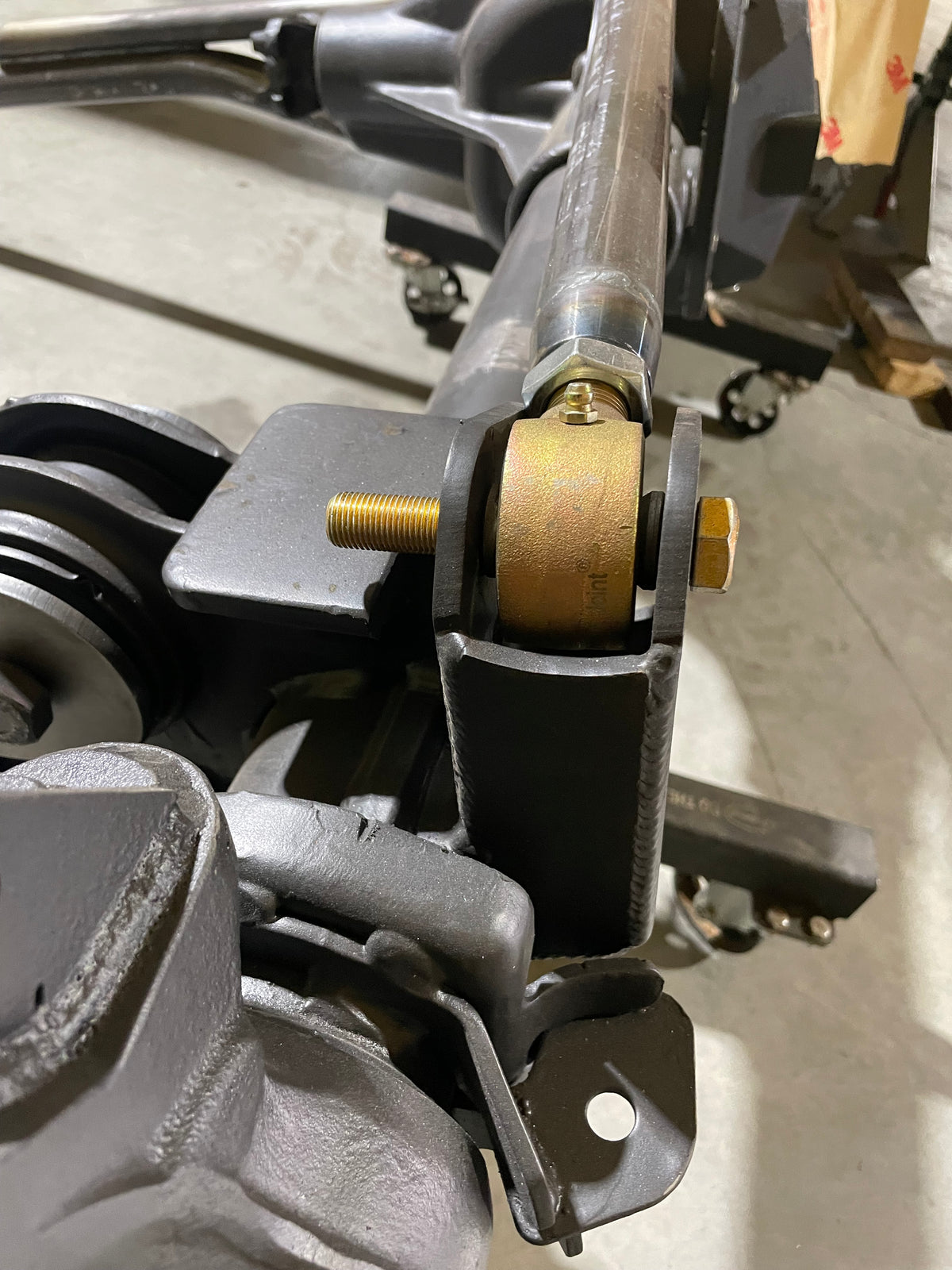

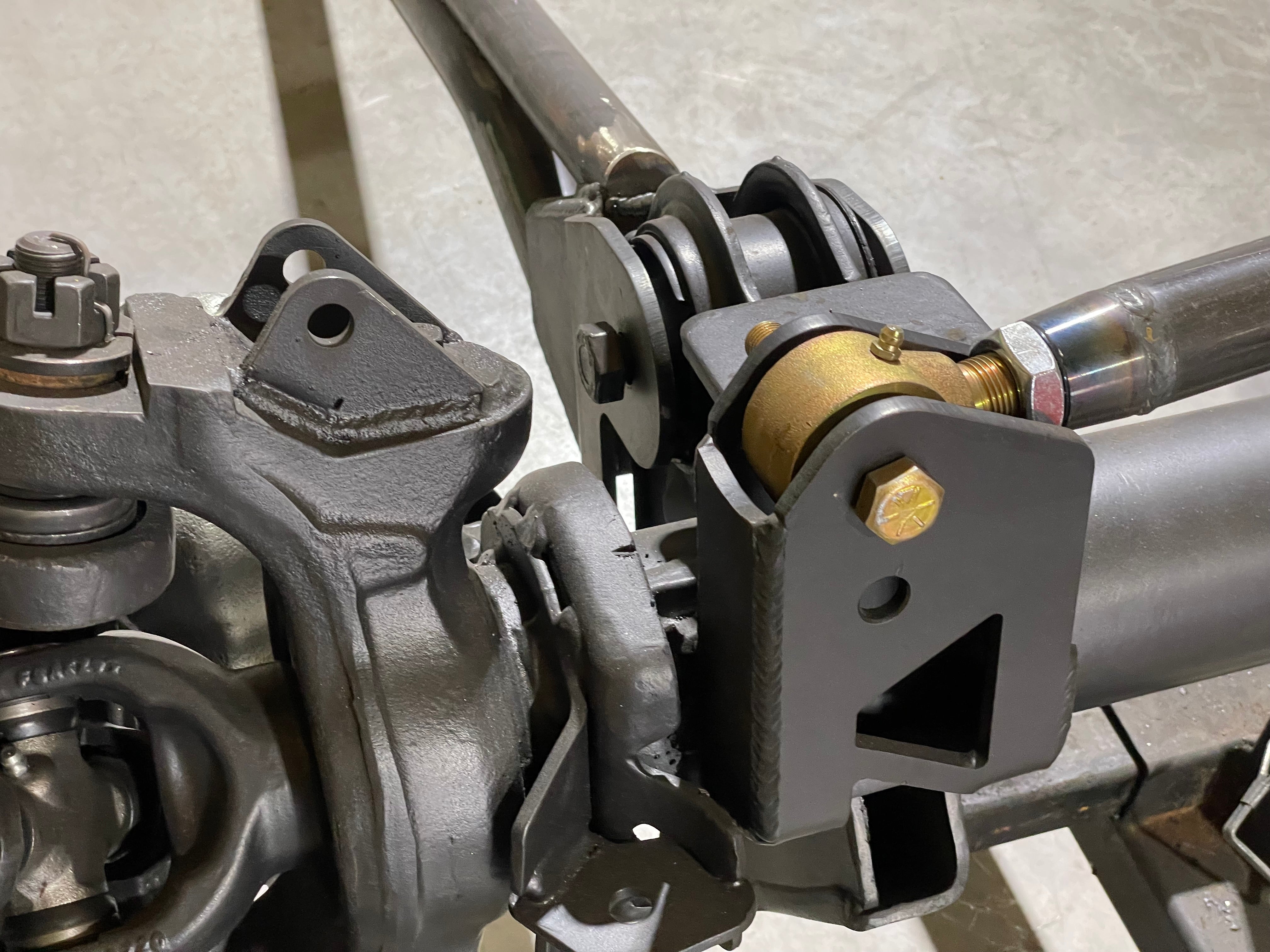

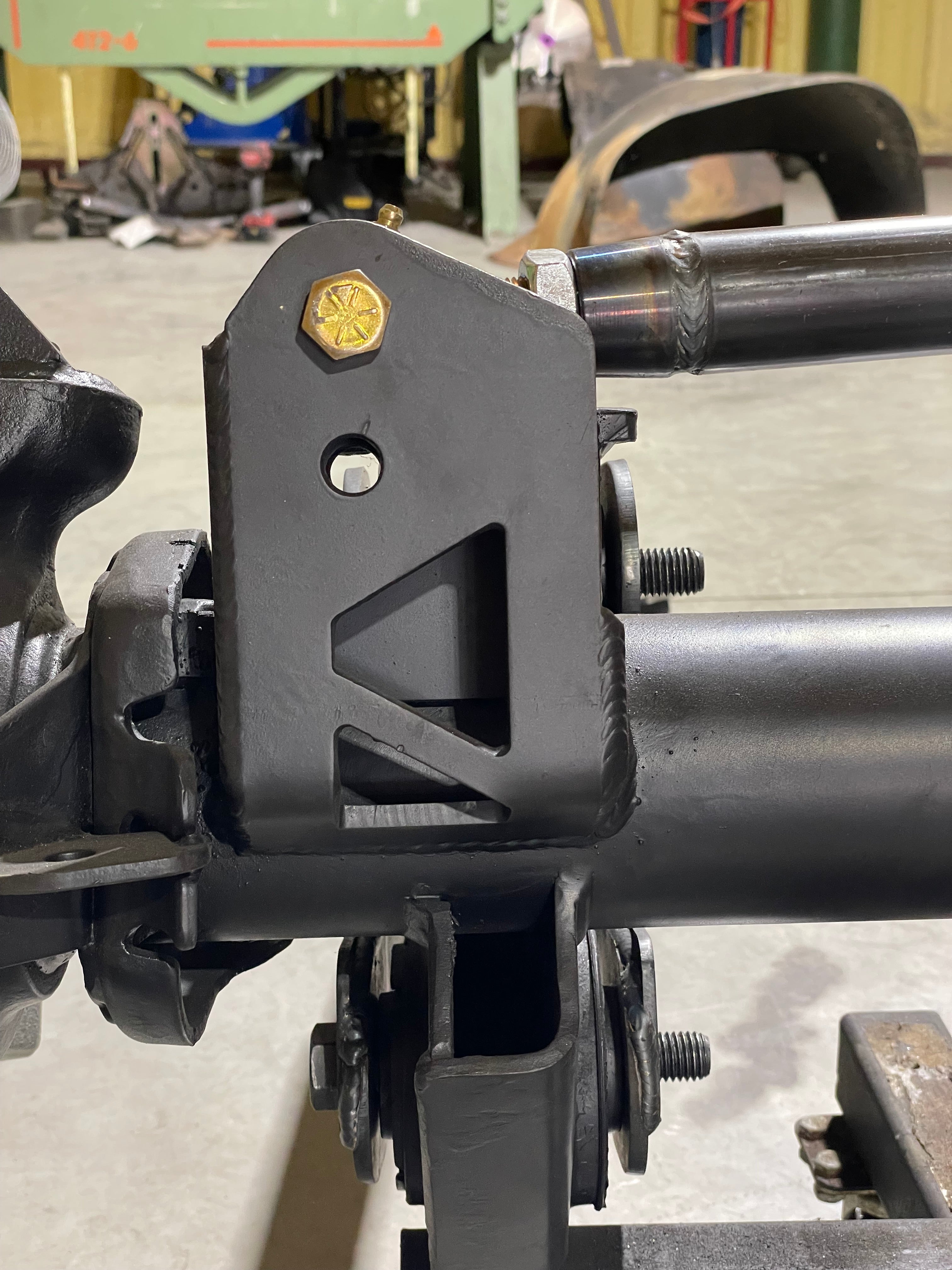

- Track bar axle mount (weld-on). Raises track bar for a more level, balanced position.
- Track bar frame-side mount.
- Lower coilover axle mount. (Bolt and weld-on required)
We install these coilover conversion kits at our Texas location if you'd prefer us to complete the install. Please reach out to us for a quote for the installation cost, which is not included in the price of the kit.

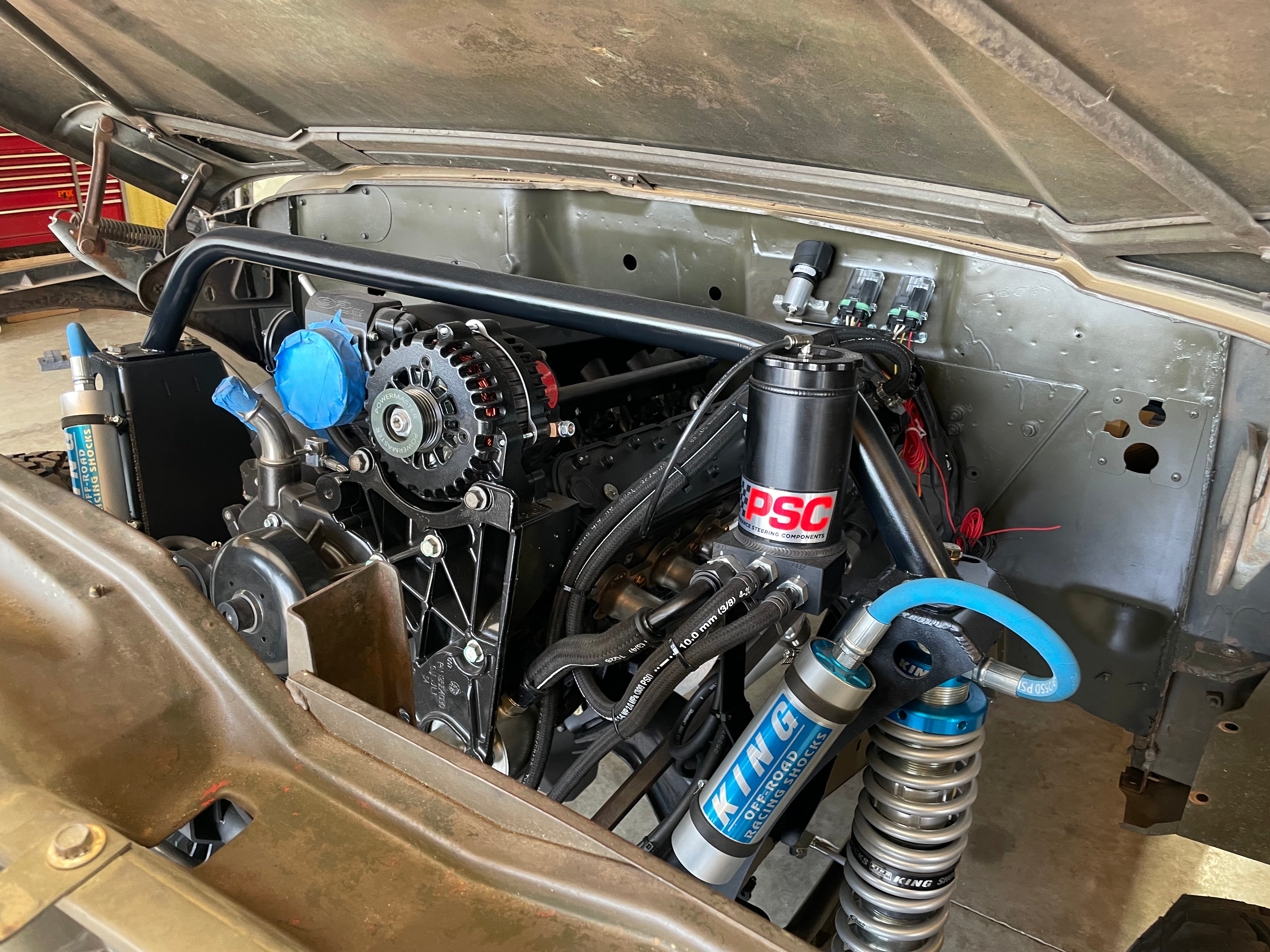

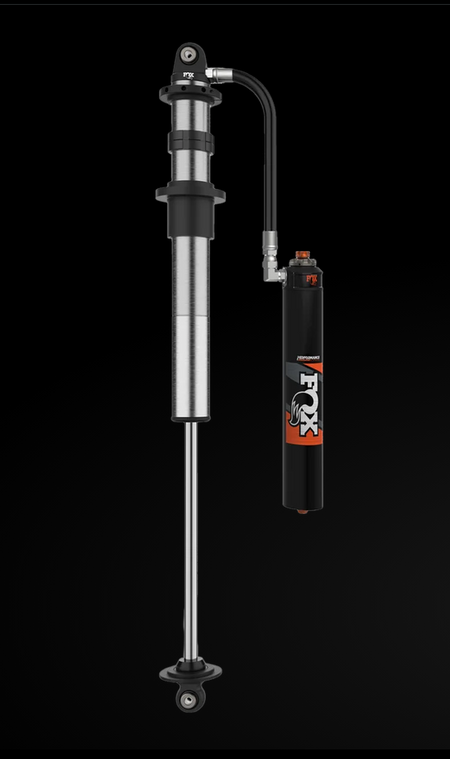

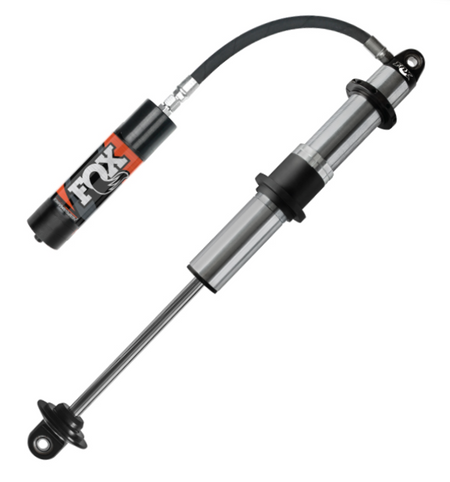

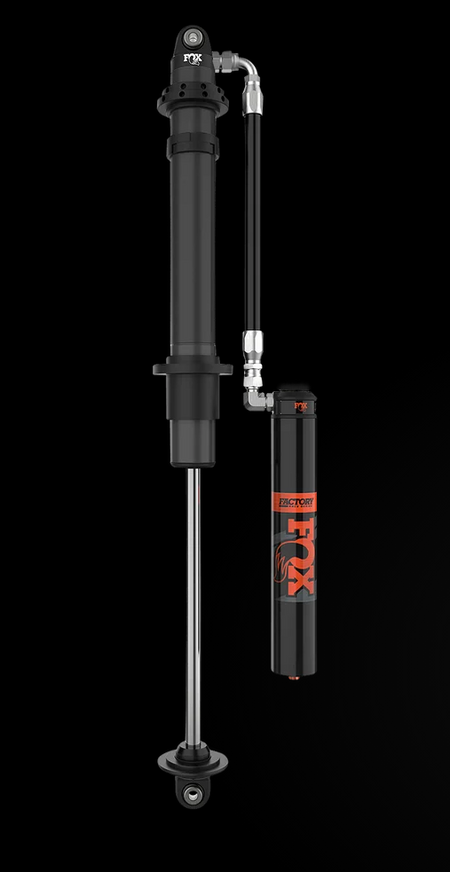

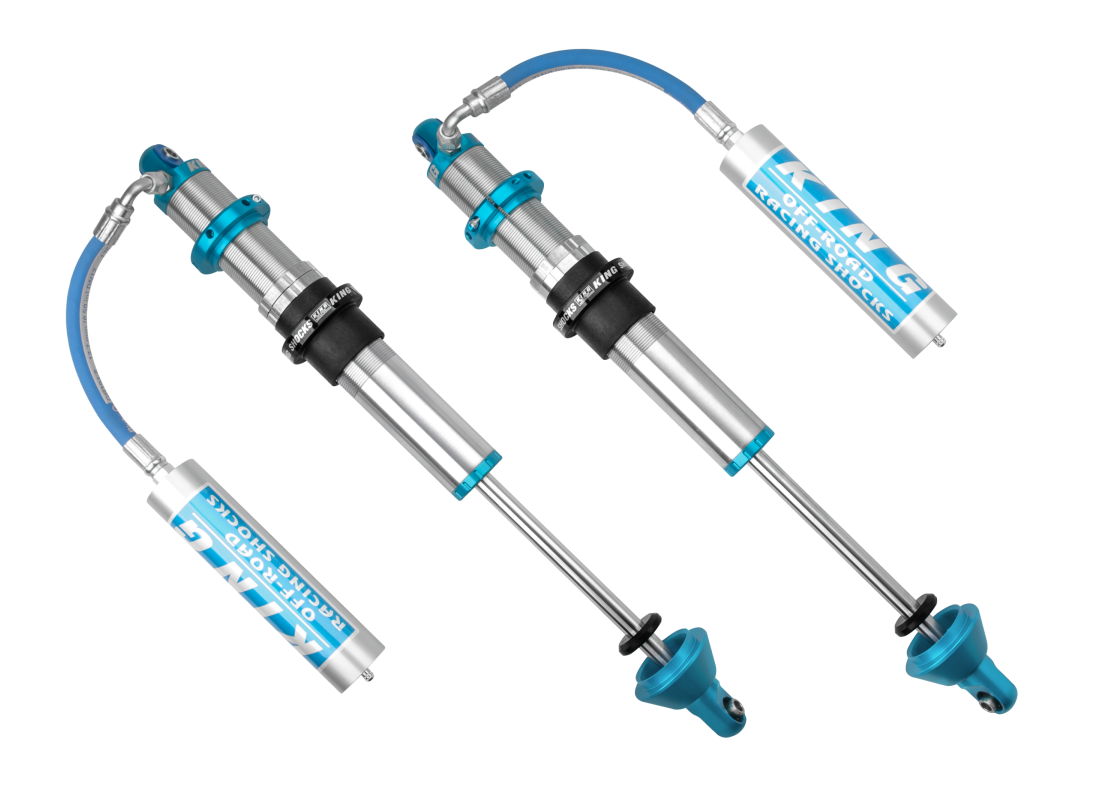

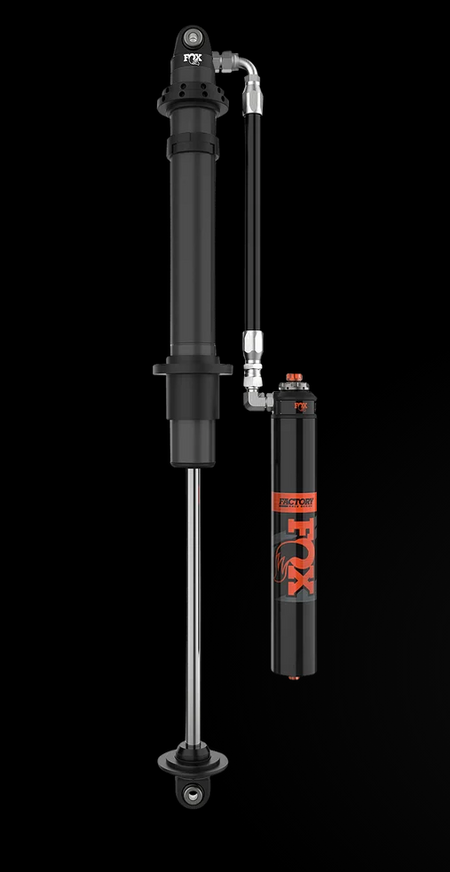

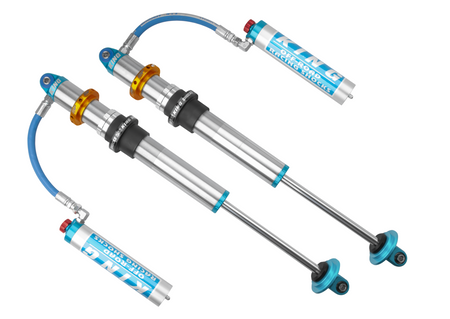

Note: If desiring coilover shocks and springs, you can do so VIA the drop down options. All of the coilovers listed are confirmed to work with our kits. Some coilovers are made-to-order and may take multiple weeks to arrive. If needing an estimate on shipping times, please reach out to us prior to placing your order.
Disclaimer: All pieces of the kit come in raw steel, painting/powdercoating is up to the customer. This kit is designed for offroad use only. Professional Installation required. Some welding is required. Installation requires proficient knowledge of fabrication/assembly to perform the installation. When installed by anyone other than Highline 4x4, Highline 4x4 is not responsible for a poor installation. Final product may differ slightly from the pictures.
